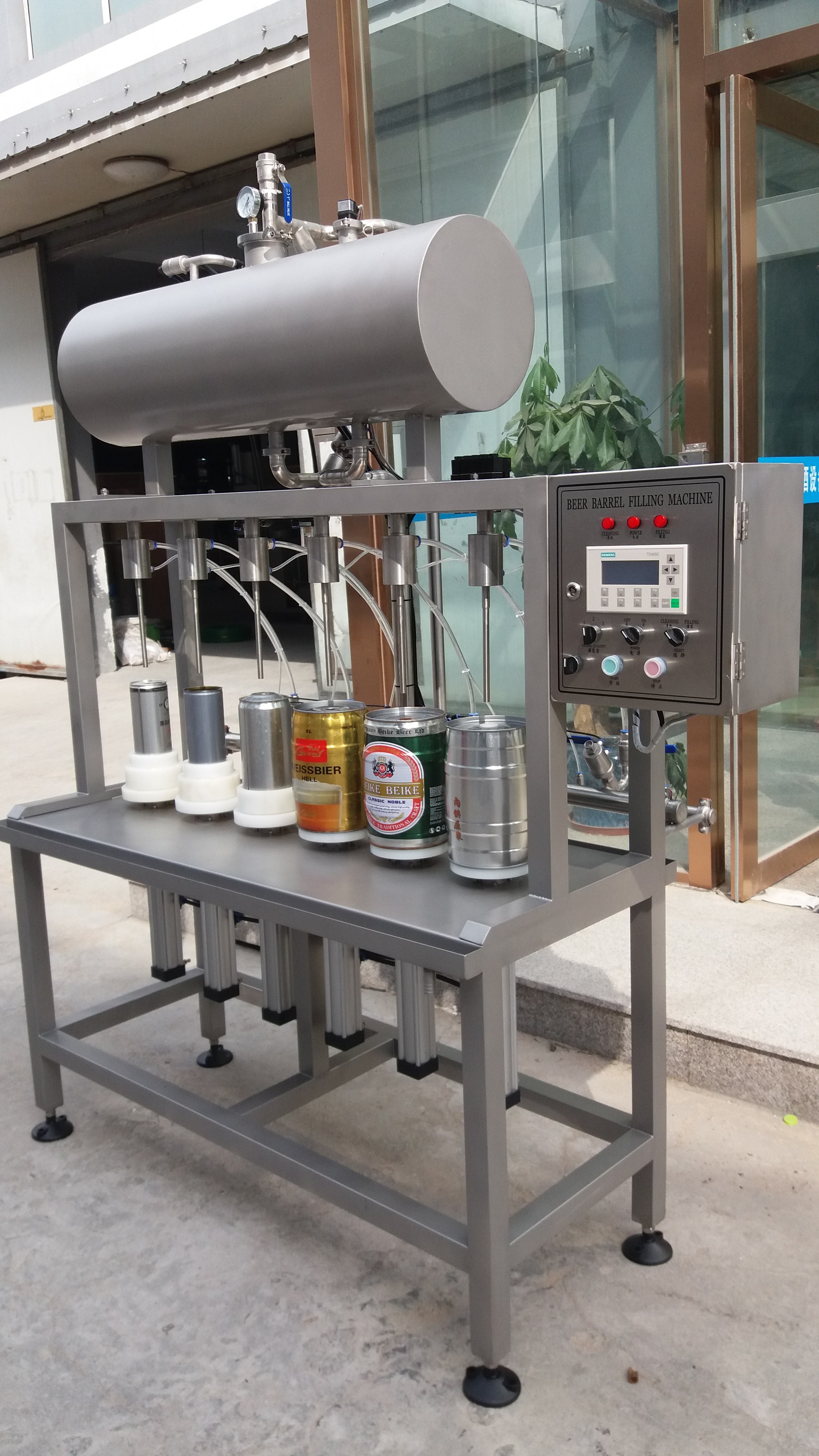

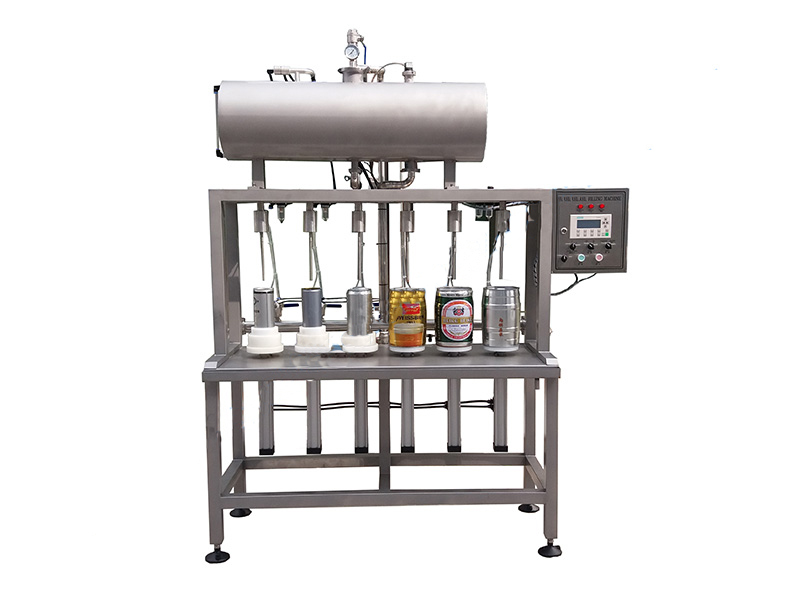

Automatic Tinplate Beer Can Filling Machine with Tank for brewery use
Main Technical Parameters
Equipment Outer Dimensions 1000*800*2400mm
Net Weight 200KG
Production Capacity 300-600 cans/H
Applicable Cans 330ML-2L tinplate cans
Filling Stations 4-10
Power Supply Voltage AC 380V 50HZ (customized)
Main function and feature
1、All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted and shown through touch screen without stopping the machine.
2、Adopt isobar filling method and with unique pressure maintaining system，performance stable and reliable, beer loss minimum.
3、With pressure compensator, to guarantee a stable filling process.
Fix the bottles--purge -- filling-- pressure stabilization--pressure relief--take the cans
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304 All signs & wording in English All tanks to be supplied with Data Plates including Test Data & Serial Number All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar) All tanks will be pressure tested for 48hours before leaving the MICET factory; All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation All tanks are mirror polishing inside, to be Ra 0.4um. All Gaskets are manufactured with EPDM
T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.
The manufacturing time is 30 – 45 working days, and will be commenced as soon the initial 40% deposit is received in MICET account and technical drawings are signed & confirmed by the client The technical files, layouts, drawings and all other technical confirmation time(s) shall not be included in the manufacturing time. Production will not start until all drawings, technical files or layouts are confirmed & signed by appropriate party. This can lead to delays in production and / or delivery time if not completed.
