Introduction:

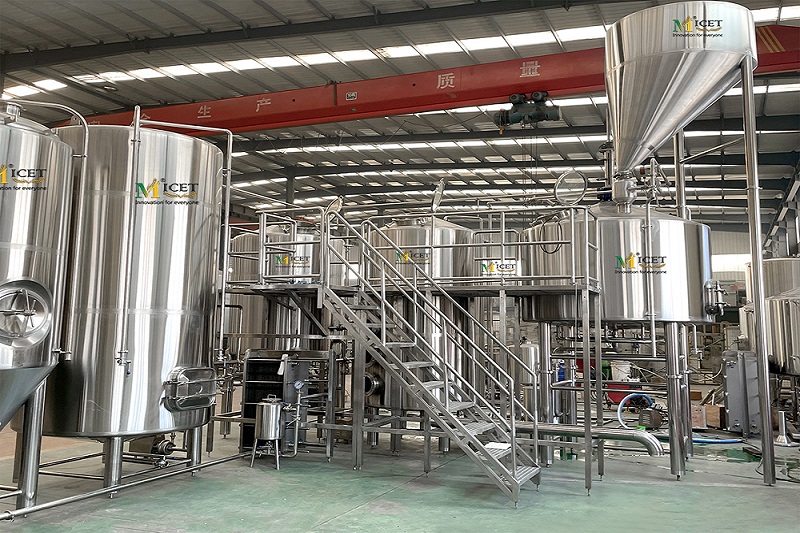

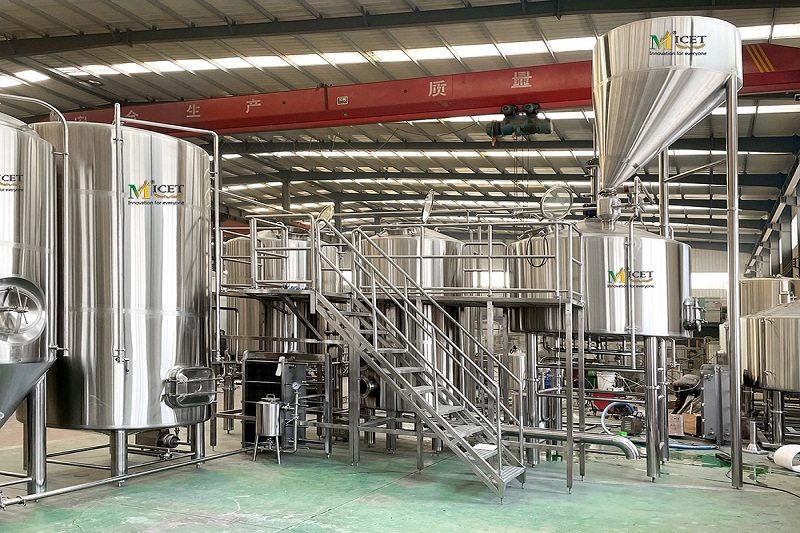

This a three vessel beer brewery combined with mash/lauter tun, kettle/whirlpool tank and hot liquor tank, is designed just for the American market, with grist hydrator, gearbox, grant, skid mounted platform, two pumps, multi-positioned butterfly valves, which is always Micet's highest standard for North American market. We are specialized in manufacturing different types of industrial breweries and microbreweries to different clients in the world. The full line products including milling, mashing, fermentation, cooling, filtration, filling and other related processes. We focus on each brewing system to stringent testing procedures before publishing them in the market.
Brewery Main tank: Mash/lauter tun, kettle/whirlpool tank, HLT
Standard design: 3HL,5HL,8HL,10HL,15HL,20HL, 30HL or customize
Detailed configuration:
Mash tun:
Effective volume: 20HL, total volume: 25HL;
Inner-Jacket (SUS304), TH=:3.0mm; External-Jacket (SUS304), TH=2.0mm;
Insulation layer: PU-thickness: 80mm; Direct fired with rock wool;
Lauter tank equipped with plow knife (raker knife); Raker motor(CE, cUL)
Top manhole: round glass manhole; Side grain outdoor with grain chute;
360° coverage CIP spraying ball; Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Lauter tun:
Effective volume: 20HL, total volume: 25HL;
Inner-Jacket (SUS304), TH=:3.0mm; External-Jacket (SUS304), TH=2.0mm;
Insulation layer: PU-thickness: 80mm; Direct fired with rock wool;
Lauter tank equipped with plow knife (raker knife); Raker motor(CE, cUL)
Top manhole: round glass manhole; Side grain outdoor with grain chute;
Easy-clean and detachable Sparging sprayring
Laser cutting T-wires false bottom (filter);
Filter way: Suction filtration by speed controlled pump( CE, UL);
Flat base, with wort collection tube and underflush system
Equipped with balance tank and grain out dustpan;
360° coverage CIP spraying ball; Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Kettle/whirlpool tank:
Effective volume: 20HL, total volume: 25HL;
Inner-Jacket (SUS304), TH=:3.0mm; External-Jacket (SUS304), TH=2.0mm;
Insulation layer: PU-thickness: 80mm; Direct fired with rock wool;
Top manhole: round glass manhole;
360° coverage CIP spraying ball; Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Heating way: Steam heating/ electric heating/ direct fired heating optional.
Steam vent by steam condenser with spray nozzles
Sanitary leveling sight glass at the back of kettle;
Tangential whirlpool
