Introduction:
The automatic beer brewery is designed just for the American market, with grist hydrator, gearbox, grant, skid mounted platform, two pumps, multi-positioned butterfly valves, which is always Micet's highest standard for North American market. We are specialized in manufacturing different types of industrial breweries and microbreweries to different clients in the world. The full line products including milling, mashing, fermentation, cooling, filtration, filling and other related processes. We focus on each brewing system to stringent testing procedures before publishing them in the market.

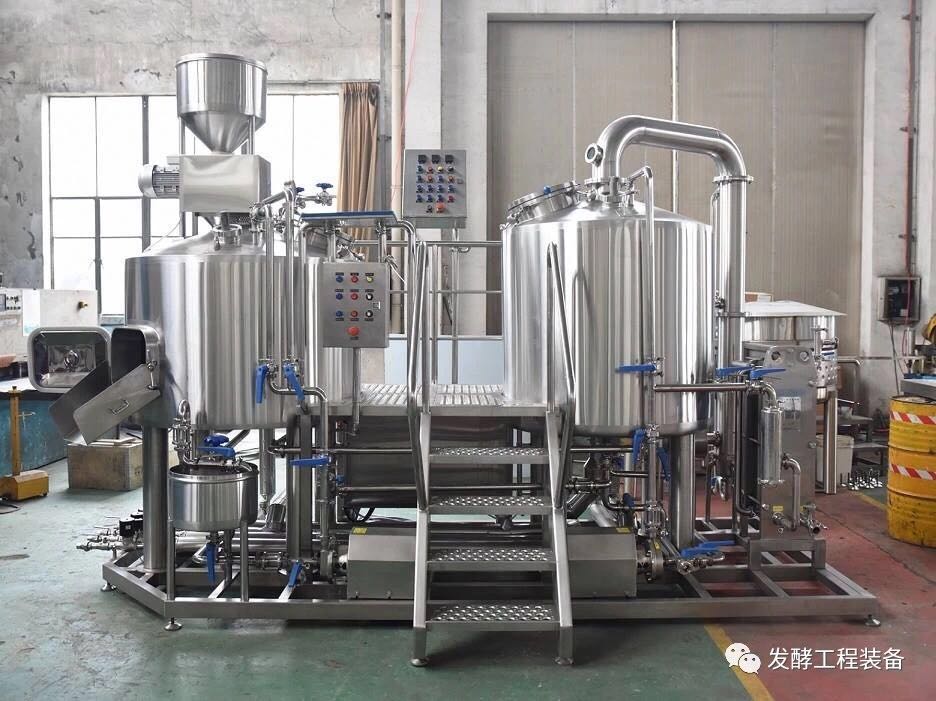

Skid-mounted brewhouse combination:
7bbl Mash/lauter tun, 7bbl kettle/whirlpool tank, 8m2 heat exchanger
Detailed configuration:
Mash/lauter tun:
Material: SUS 304;
Inner-Jacket TH=:3.0mm; External-Jacket TH=2.0mm;
Insulation layer: PU-thickness: 80mm;
Lauter tank equipped with plow knife (raker knife with scraping plate); Raker motor;

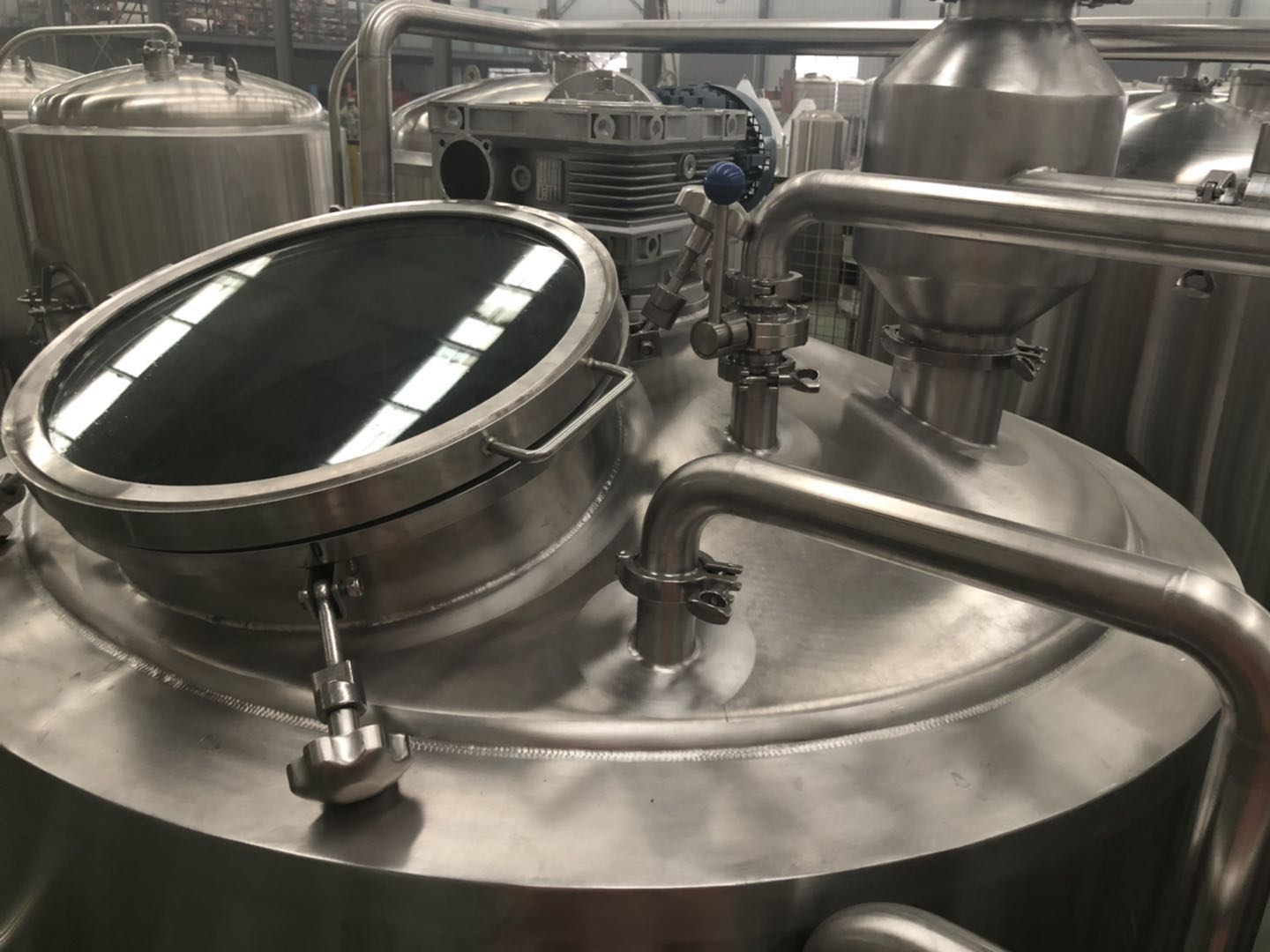

Top manhole: round glass manhole; Side grain outdoor with grain chute;
Easy-clean and detachable Sparging sprayring
Laser cutting T-wires false bottom (filter);
Filter way: Suction filtration by speed controlled pump;
Flat base, with wort collection tube and underflush system
Equipped with balance tank and grain out dustpan;
360° coverage CIP spraying ball;
Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Steam jacketed heating 2 zone
Kettle/whirlpool tank:
Material: SUS 304;
Inner-Jacket TH=:3.0mm; External-Jacket TH=2.0mm;
Insulation layer: Rock wool-thickness: 80mm;
Top manhole: round glass manhole 400mm;
360° coverage CIP spraying ball;
Temperature measurement way: PT100
4 completely SUS304 heavy duty legs with leveling pads
Heating way: Steam heating;
Steam vent by steam condenser with spray nozzles
Sanitary leveling sight glass at the back of kettle;
Tangential whirlpool inlet
Optional configuration:
Heat exchanger: hunging typeNuanbao Brand
Paltform: Normal standard or water leaking type
Pumps ABB or JLEM
