Introdcution:
This system is a 3 tank 3 vessel brewhouse design, shipped to the USA brewing market, can be used for microbrewery, beer factory brewing for different sized flavor beers. There two options for different brewing process, including mash/boiling/whilrpool, lauter tun, and mash/lauter, kettle/whirlpool. The hot liquor tank can be 30bbl, with double brews perday. The first design is normally used for India and China market, the second design is normally used in North American, UK and Southern American brewing.
Specification
Capacity/Brew 10BBL 12BBL 15BBL 20BBL 25BBL 30BBL 35BBL
Brews/Week 6～12 6～12 6～12 6～12 6～12 6～12 6～12
Capacity/Week 60～120BBL 72~144BBL 90~180BBL 120~240BBL 150~300BBL 180~360BBL 210~420BBL
Electric Supply 3phase/380(220, 415,440)v/50 (60)Hz
Single Phase/ 220(110, 240v)/50(60)Hz
Heating Source Steam/Directly Fired
Location needed >70M2 >80M2 >100M2 >120M2 >140M2 >150M2 >180M2
Brewmaster 1 1 1 2 2 3 3
Note: 1US Barrel (BBL) =117Liter; 1UK Barrel=164L.
Configuration
1. Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional

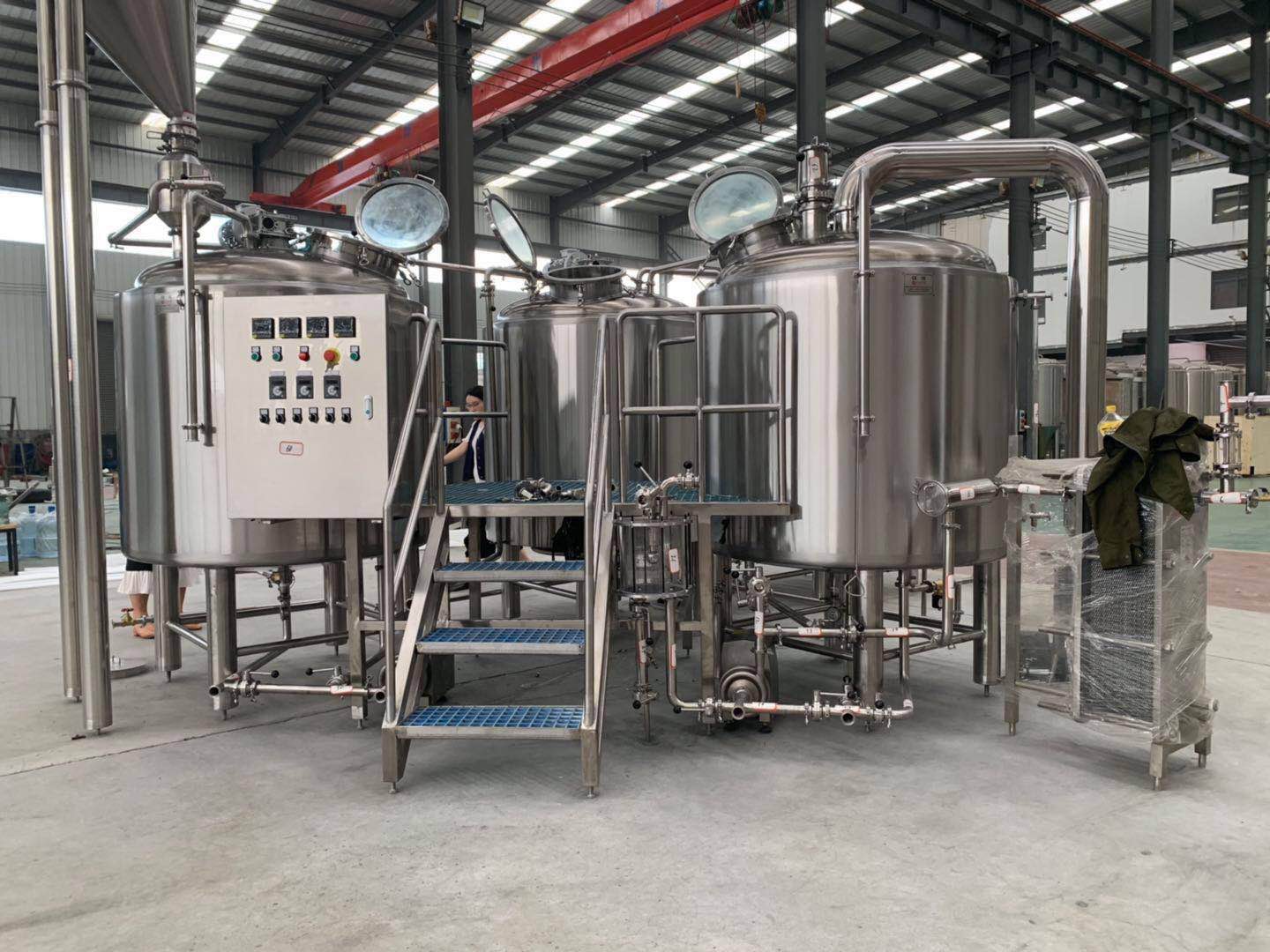

2. 10BBL Brewhouse configuration
Every Weld Blended and Finished to a Smooth Sanitary Finish

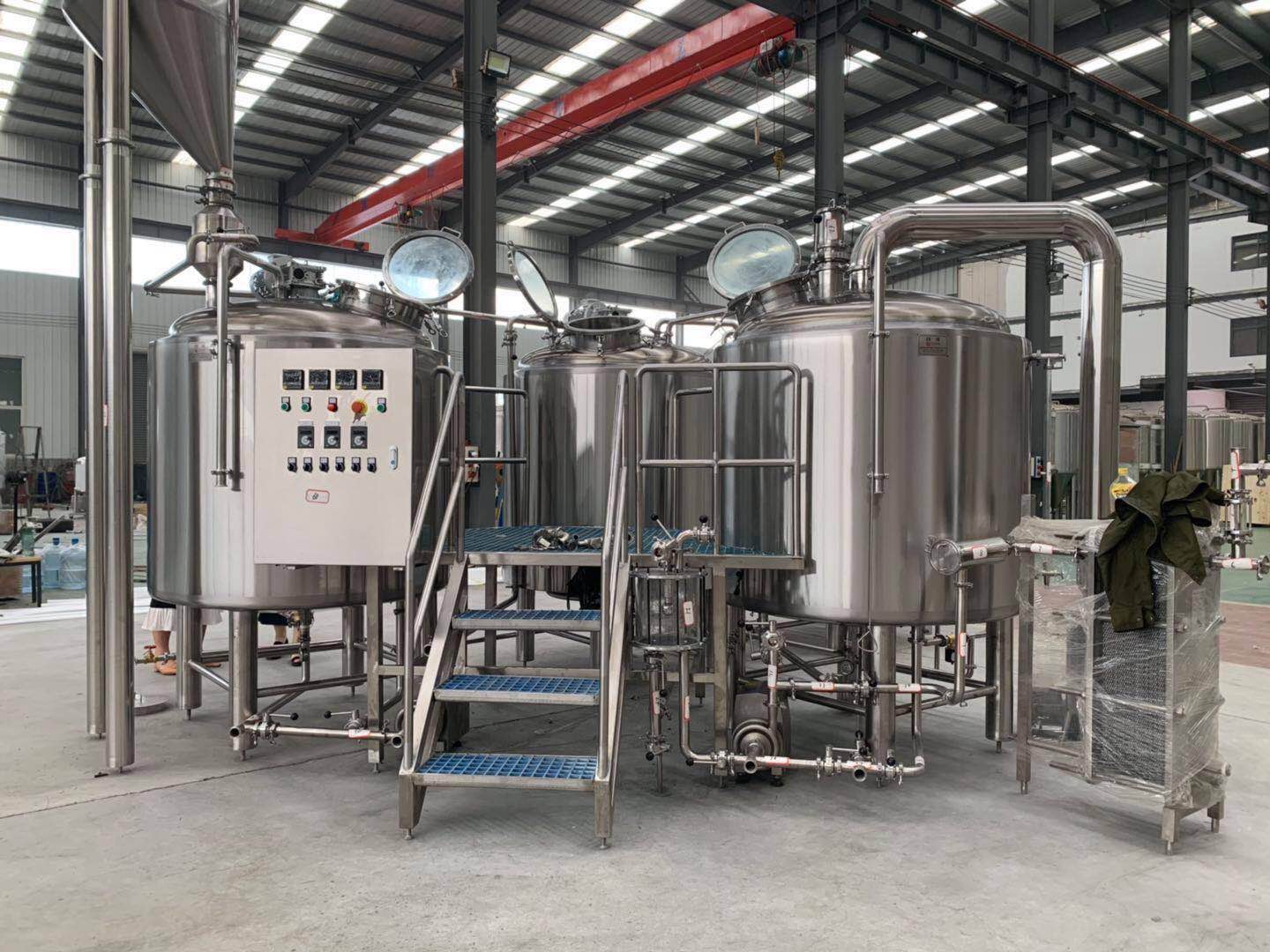

Stainless steel brewing platform & integrated stairs or ladder with adjustable footpads for platform leveling

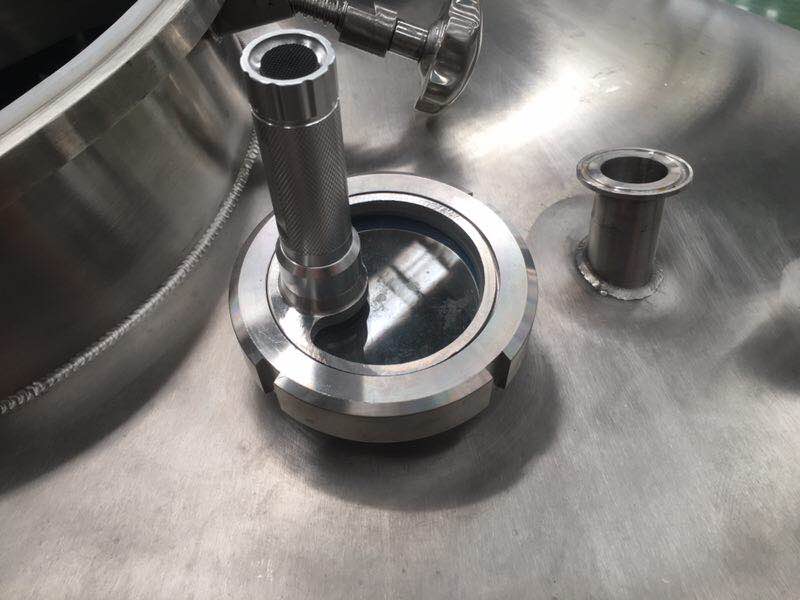

Stainless steel hard piping and brewhouse manifold with butterfly valves, Sight glass and all required clamps and gaskets to hook tanks together
Stainless steel steam condensation stack with spraying nozzles.
Sanitary centrifugal pump for mash, wort or hot water transfer
Fixed speed or various speed agitator and rake for efficient lautering and spend grain removing
High Efficiency multi-pass plate type heat exchanger with thermometer and oxygenate aeration stone port (stone not included)

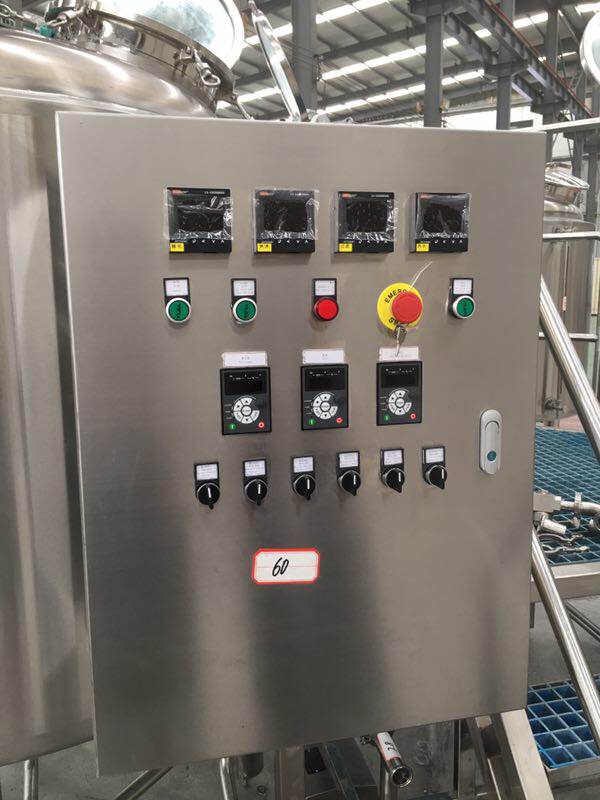

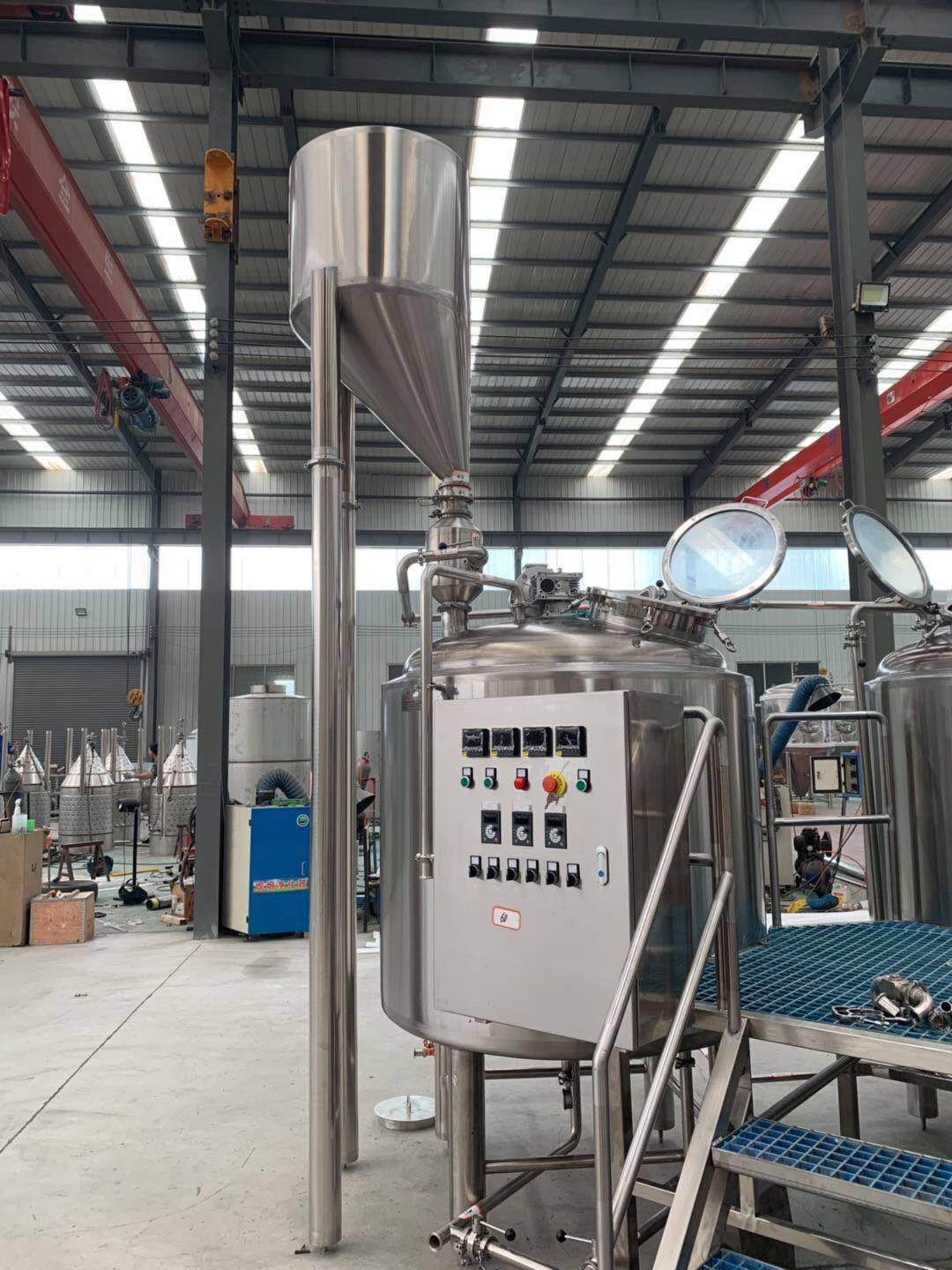

Control panel in stainless steel with digital control and readout to programmable optimized water temperature

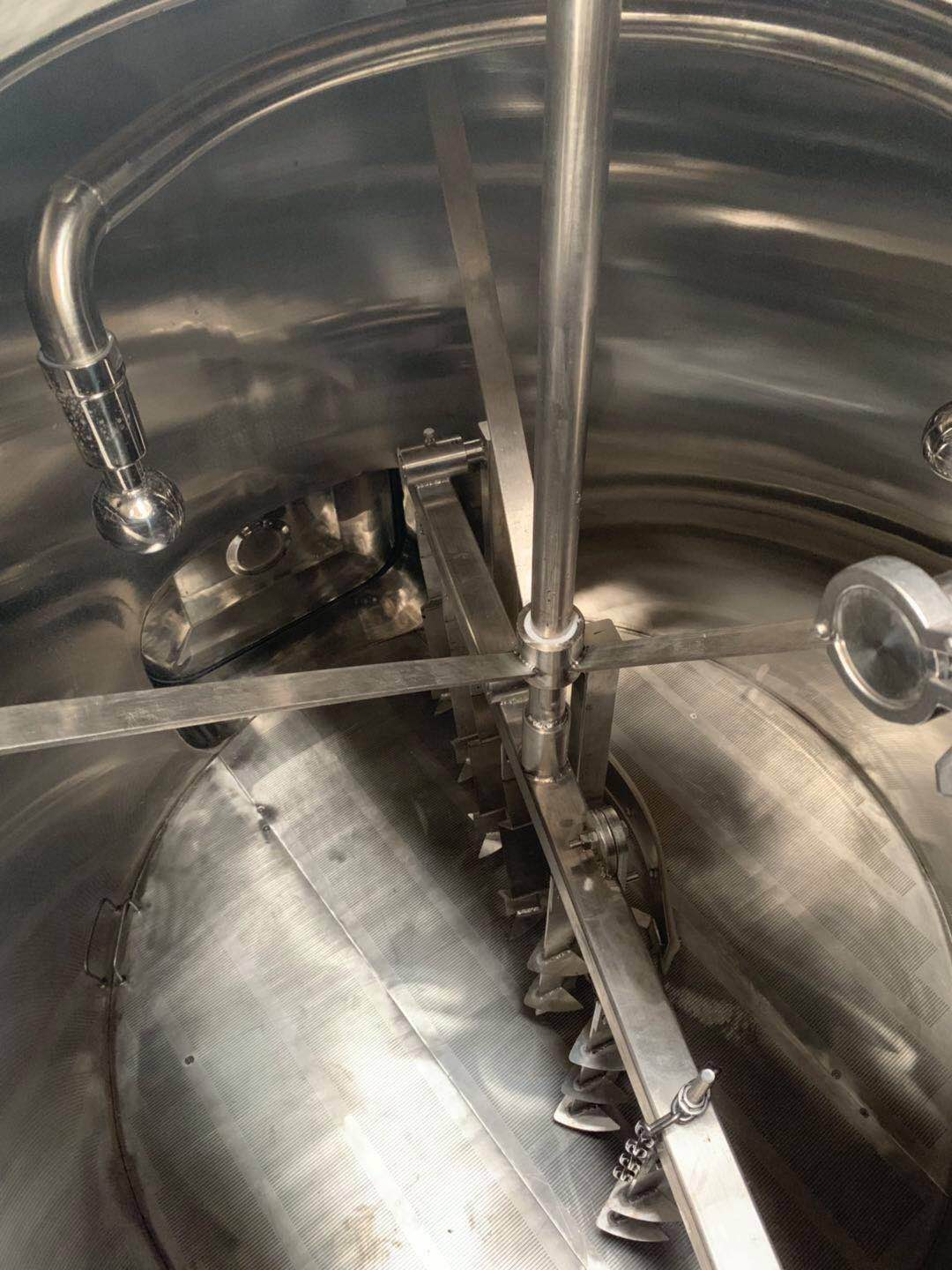

V-Wire False Floor Included in Mash/Lauter Tun – virtually guarantees consistent wort flow
Compact- Space Saving and flexible Brewing Configurations
Eelectric heating through electric flange
Standard Thermometers and Thermawell Adapters
VFD controlling for pumps and motors
Level gauge
3.20BBL Hot liquor tank
Eelectric heating through electric flange
Sanitary centrifugal pump for hot water transfer
Level gauge
3.20BBL Hot liquor tank
Eelectric heating through electric flange
Sanitary centrifugal pump for hot water transfer
Level gauge
4. 10bbl Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
5. Beer Filter Unit(optional)
In restaurant or bar, beers are always served as craft beer without filtration
6. 10bbl Bright Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included
7. Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are include
Technical Notes:
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304
All signs & wording in English
All tanks to be supplied with Data Plates including Test Data & Serial Number
All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks
All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar)
All tanks will be pressure tested for 48hours before leaving the MICET factory;
All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation
All tanks are mirror polishing inside, to be Ra 0.4um.
All Gaskets are manufactured with EPDM
Payment Term
T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.
Delivery Term
The manufacturing time is 40 – 45 working days, and will be commenced as soon the initial 40% deposit is received in MICET account and technical drawings are signed & confirmed by the client
