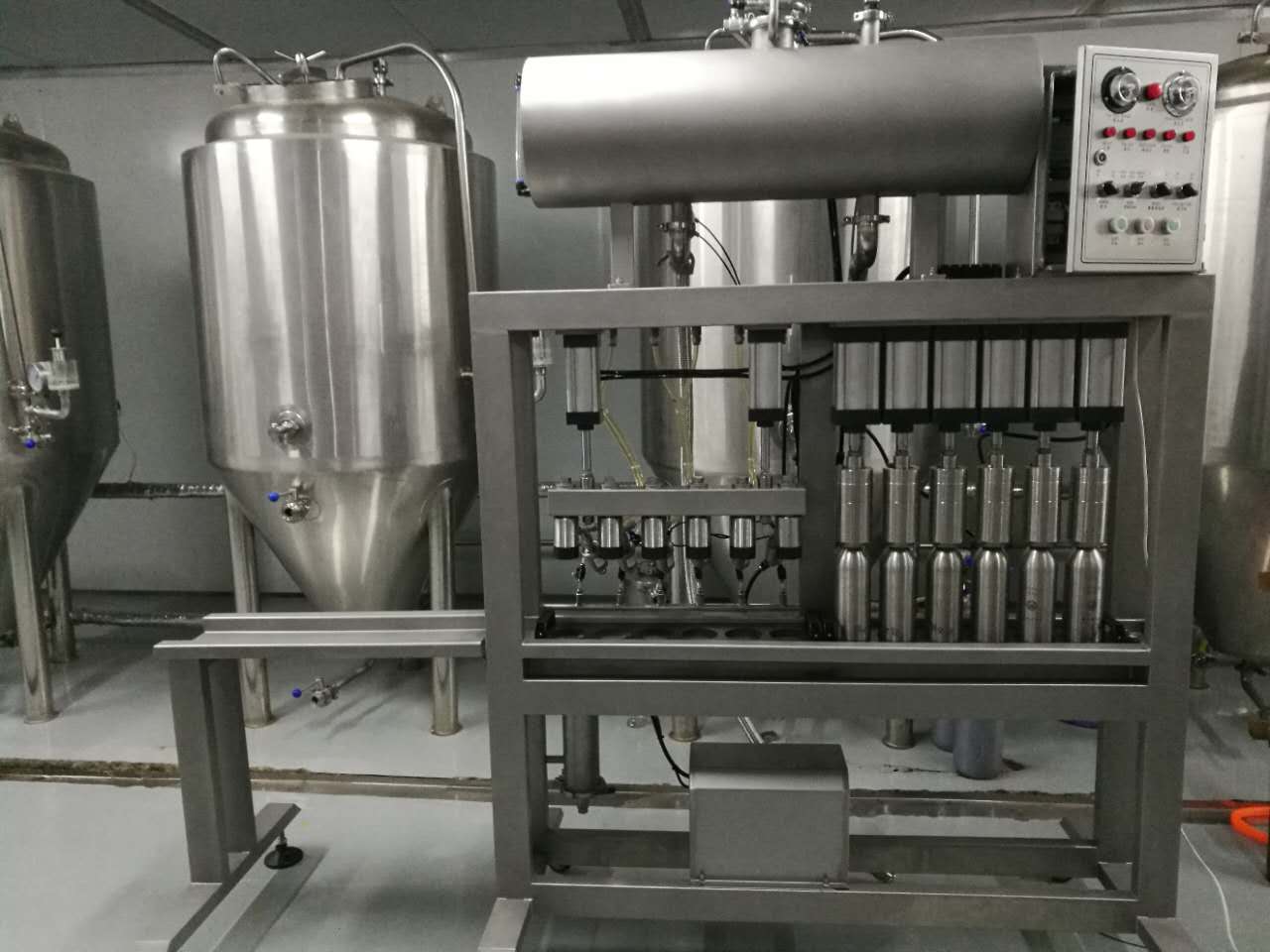

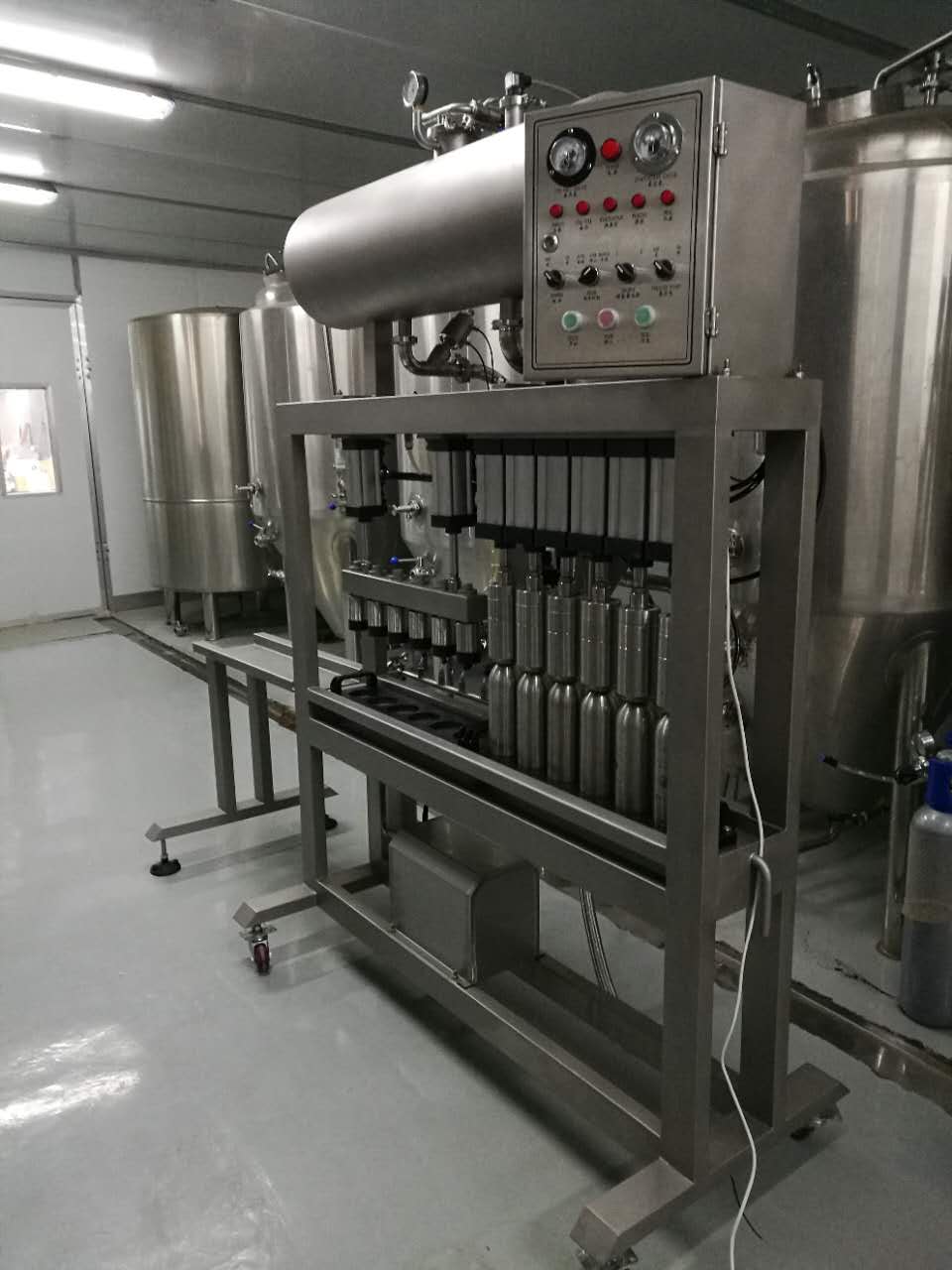

This designed bottle filling equipment is especially designed for microbrewery from 100L-1000L, the filling capacity is from 100b/h to 600b/h, there are 2 heads, 4 heads, 6 heads, 8 heads and 10 heads for your chooing.
Main Technical Parameters
Equipment Outer Dimensions 1800*800*2200mm
Net Weight 300KG
Production Capacity 300-600 bottles/H
Applicable Bottles 330ml-2L bottles
Working Stations 4-10
Power Supply Voltage AC 220V 50HZ (customized)
Main function and feature
1、Automatic control by PLC, all parameters can be adjusted.
2、Filling and capping process can be finished in this machine at one time.
3、With CO2 pressurization and could add vacucum.
4、Adopt isobar filling method and with unique pressure maintaining system，performance stable and reliable, beer loss minimum.
5、With pressure compensator, to guarantee a stable filling process.
6、Could product the glass bottle or Stainless Steel bottle manual filling and capping AIO machine (user-selectable) .
Fix the bottles--co2 purge---- isobaric——filling-- pressure stabilization--pressure relief--stop--move the bottles to the capping stations--capping--take the bottle
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304 All signs & wording in English All tanks to be supplied with Data Plates including Test Data & Serial Number All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar) All tanks will be pressure tested for 48hours before leaving the MICET factory; All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation All tanks are mirror polishing inside, to be Ra 0.4um. All Gaskets are manufactured with EPDM
T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.
The manufacturing time is 30 – 45 working days, and will be commenced as soon the initial 40% deposit is received in MICET account and technical drawings are signed & confirmed by the client The technical files, layouts, drawings and all other technical confirmation time(s) shall not be included in the manufacturing time. Production will not start until all drawings, technical files or layouts are confirmed & signed by appropriate party. This can lead to delays in production and / or delivery time if not completed.
