This set of 2000L brewery plant is combined with Mash/kettle/whirlpool tank and lauter tun, and double brewed hot liquor tank, could liquor tank, which was designed and installed for commercial brewery in France Maison PIP. The configuration as follows.
Specifications: 1. Malt transporting system, flex auger and grist case

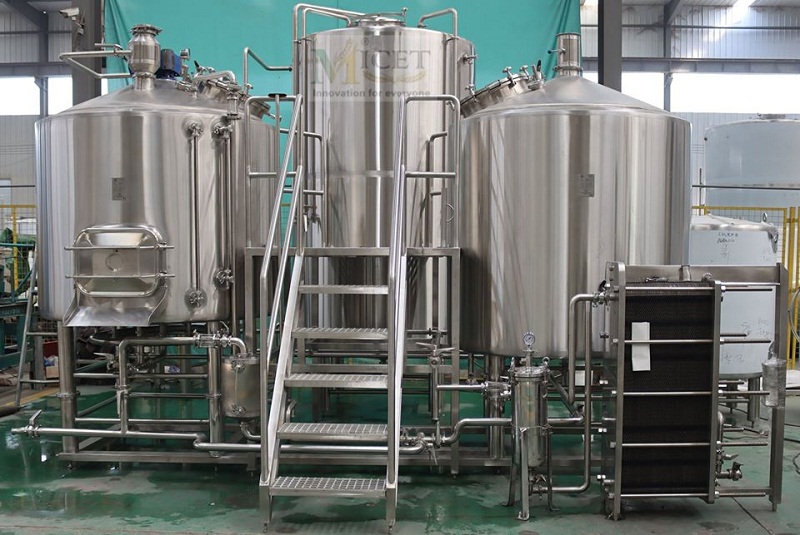

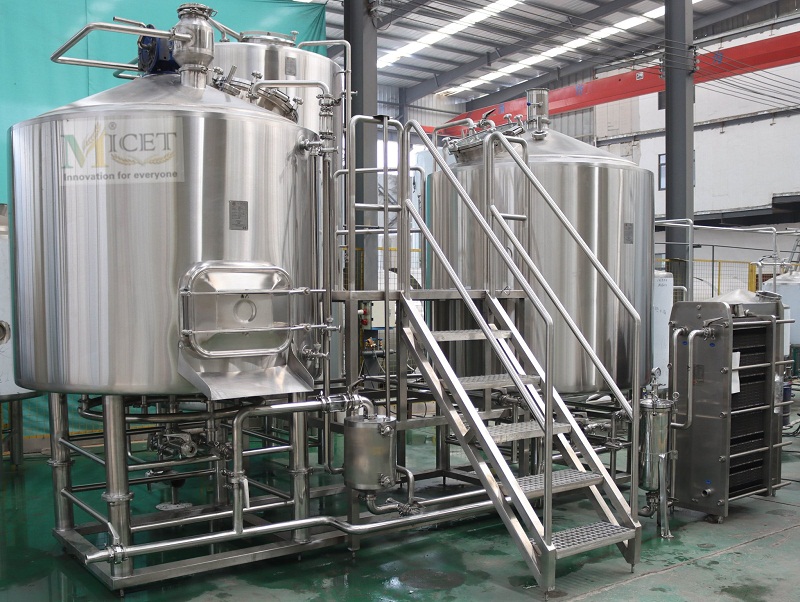

2. 2000l Brewhouse Unit
Mash/kettle/whirlpool tank, lauter tun
Two stages stage heat exchanger for wort cooling
Sanitary SUS 304 wort pump
Special designed balance tank horizonal, full stainless steel
Water leaking work platform
Hops filter before exchanger after whirlpooling
5000L Double sized hot liquor tank
4000L Double sized cold liquor tank ABB CE certificated HLT, CLT pump

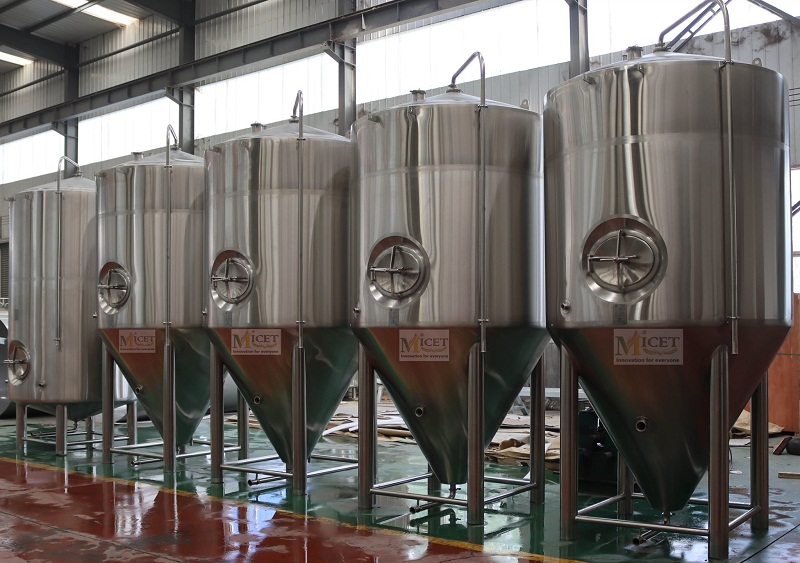

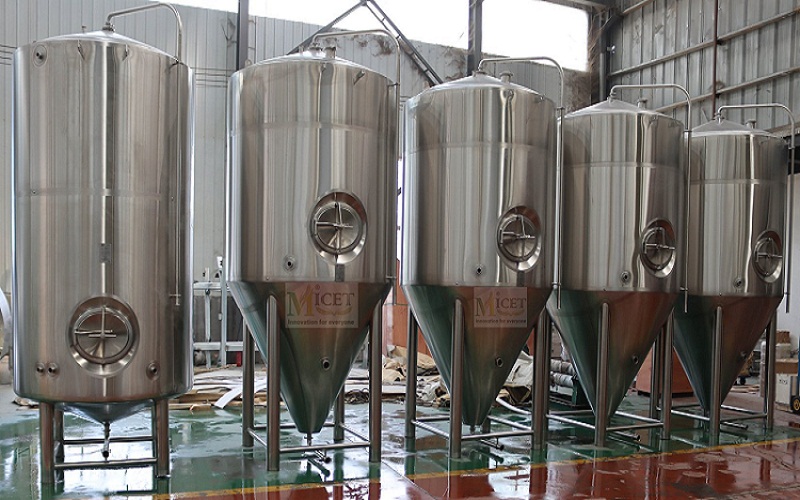

3. 4*4000l Fermentation Unitank Unit
2*2000L Bright beer tank
Standard stainless steel 60 conical cylindrical fermentation tanks
Double size as brewhouse used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Side shdowless manhole, multi-positioned butterfly valves, pressure gauges, fittings etc.,
4. Glycol cooling system
1*20P Glycol chillers
Inside packed with glcyol tank
cold liquor pump CE listed
5. 200L CIP cleaning system
200L Alkali tank with heating function BSP fitting
200L Sterilization tank
ABB CE certificated washing pump
6. PID semi-automatic control system
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
1. Strict quality control system:Micet focus on high-end product line and insist on craftsman spirit to make first-class brewing equipment, our factory have strict quality control and process inspection & testing system to make sure you get the quality you expect and delivery on time. Each of our orders shipment will have 5 inspection steps and the inspection record from materials in checking, production process, jacket pressure testing by water and air, finished product inspection and 48 hours water testing, equipment packing and loading inspection, finished product to the delivery and packing process, etc. when there is any problems, it’s easier to keep record and solve the issues quickly.
2.All piping mark numbers before shipping. Meanwhile In order to help customer to install easily, we will provide a whole process piping installation diagram as per the installation sequence.
3. About workmanship, our welding are all full welding by water, uniform dimpled steam and cooling jacket to ensure no leaking and long life, welds passivated! Our polishing are overall mirror polishing without any welds left! Below is some welding and polishing pictures and videos.
4. Most important is stainless plate thickness, most manufacturer list inner she'll 3.0mm and outer shell 2.0mm, but they eventually only use large 2.5-2.7mm, but Micet don't, our minimum will not less than 2.98mm, MICET do not cut corners.
5.All the accessorizes for brewhouse and fermenting will be counted and packed separately.
6. For shipping, each of our port will have a lid in case the dust goes into inside during shipping. For packing, stand tank will be full packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by steel frame on the skid and the legs will be fixed by thread in case of any moving during transportation.
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304 All signs & wording in English All tanks to be supplied with Data Plates including Test Data & Serial Number All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar) All tanks will be pressure tested for 48hours before leaving the MICET factory; All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation All tanks are mirror polishing inside, to be Ra 0.4um. All Gaskets are manufactured with EPDM
T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.
The manufacturing time is 30 – 45 working days, and will be commenced as soon the initial 40% deposit is received in MICET account and technical drawings are signed & confirmed by the client The technical files, layouts, drawings and all other technical confirmation time(s) shall not be included in the manufacturing time. Production will not start until all drawings, technical files or layouts are confirmed & signed by appropriate party. This can lead to delays in production and / or delivery time if not completed.
