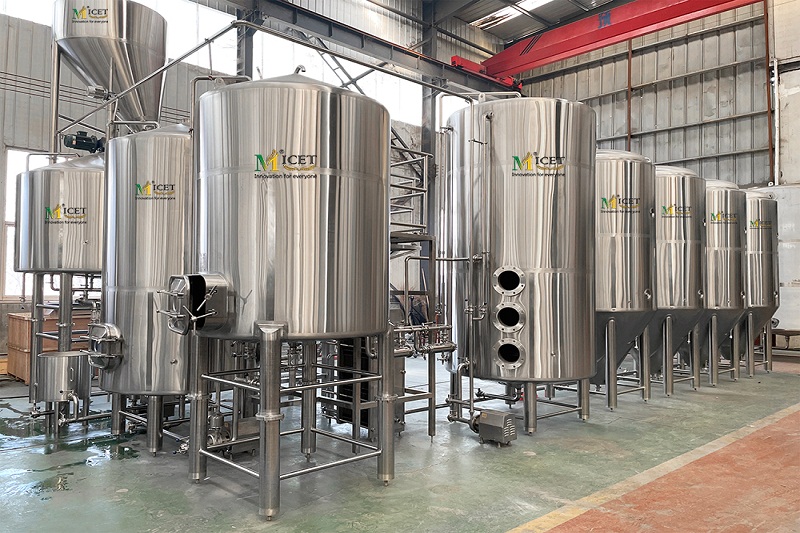

This set of 3000L brewery brewhouse is combined with Mash/lauter tun, kettle/whirlpool tank, and hot liquor tank, which was designed and installed for commercial brewery in UK. The configuration as follows.

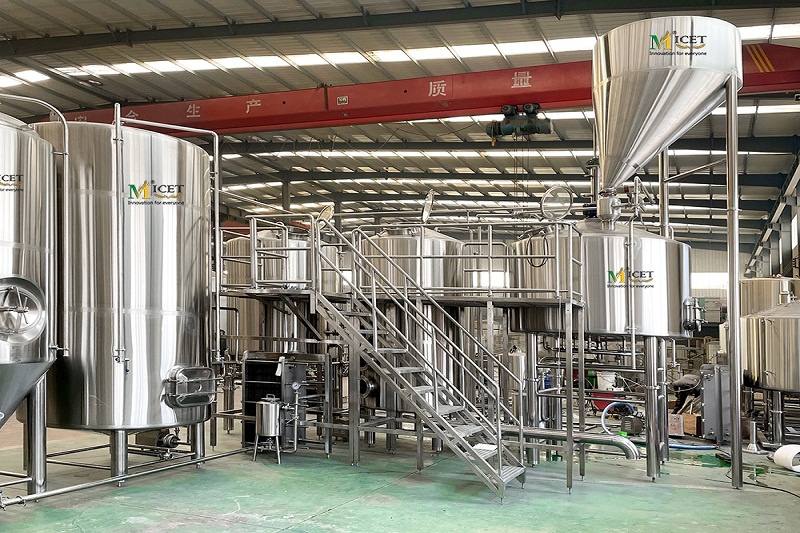

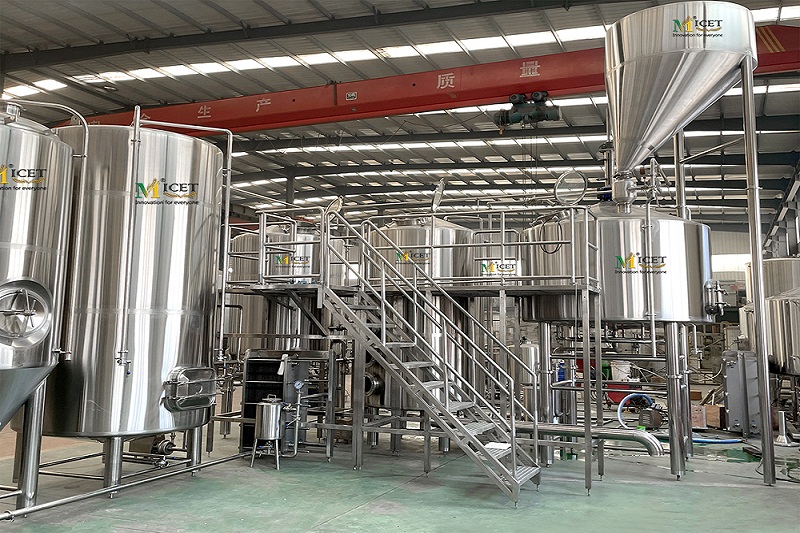

3000l Brewhouse Unit
Mash/Lauter tun, kettle/whirlpool tank
Two stages stage heat exchanger for wort cooling
Sanitary SUS 304 wort pump
Special designed balance tank horizonal, full stainless steel
Water leaking work platform
5000L Double sized hot liquor tank ABB CE certificated HLT pump

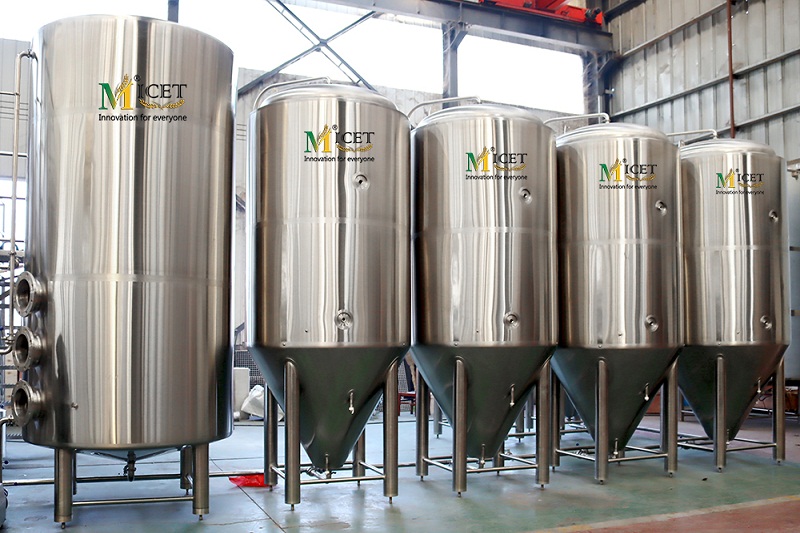

5*3000l Fermentation Unitank Unit
Standard stainless steel 60 conical cylindrical fermentation tanks
Single size as brewhouse used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Side shdowless manhole, multi-positioned butterfly valves, pressure gauges, fittings etc.,
Glycol cooling system
5000L cold liquor tank
2*7p glycol chillers CE certified
cold liquor pump
200L CIP cleaning system
200L Alkali tank with heating function BSP fitting
200L Sterilization tank
ABB CE certificated washing pump
PID semi-automatic control system
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
Combined keg filling and washing machine
Electric components CE certified
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304 All signs & wording in English All tanks to be supplied with Data Plates including Test Data & Serial Number All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar) All tanks will be pressure tested for 48hours before leaving the MICET factory; All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation All tanks are mirror polishing inside, to be Ra 0.4um. All Gaskets are manufactured with EPDM
T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.
The manufacturing time is 30 – 45 working days, and will be commenced as soon the initial 40% deposit is received in MICET account and technical drawings are signed & confirmed by the client The technical files, layouts, drawings and all other technical confirmation time(s) shall not be included in the manufacturing time. Production will not start until all drawings, technical files or layouts are confirmed & signed by appropriate party. This can lead to delays in production and / or delivery time if not completed.
