Introduction:
This set of 4000L brewery brewhouse is combined with Mash, lauter tun, kettle, whirlpool tank, hot liquor tank, which was designed and installed for commercial brewery factory in China. The configuration as follows.
Configuration:
6. Portable CIP system
Quality standard:
1. All Construction SUS 304 food grade stainless steel, all pipes are SUS304
2. All Tanks to be supplied with Data Plates including Test Data & Serial Number
3. All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks
4. All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar)
5. All tanks will be pressure tested for 48hours before leaving the Micet factory;
6. All the welds are full TIG welded by water spray method to ensure uniform weld pattern and are then acid pickled and passivated.
7. All butterfly valves are SUS 304 multiple positioned type
8. All tanks are mirror polishing inside,
9. All Gaskets are manufactured with EPDM
About us:
http://micetbrewing.com/about-us/
Our Services:
http://micetbrewing.com/service/
Configuration:

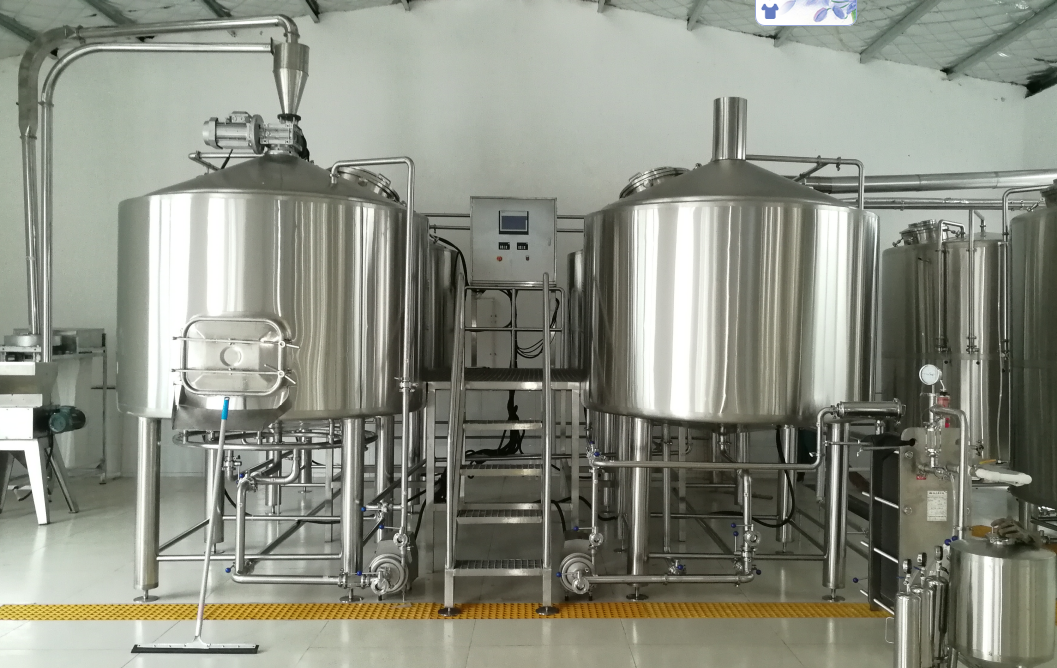

1.Brewhouse Unit
4000l Mash, Lauter tun, kettle, whilrpool
4000L Hot water tank, 4000L cold liquor tank
4000L Hot water tank, 4000L cold liquor tank
Two stages stage heat exchanger for wort cooling
Sanitary SUS 304 wort pump and HLT pump
Special designed balance tank horizonal, full stainless steel
Water leaking work platform

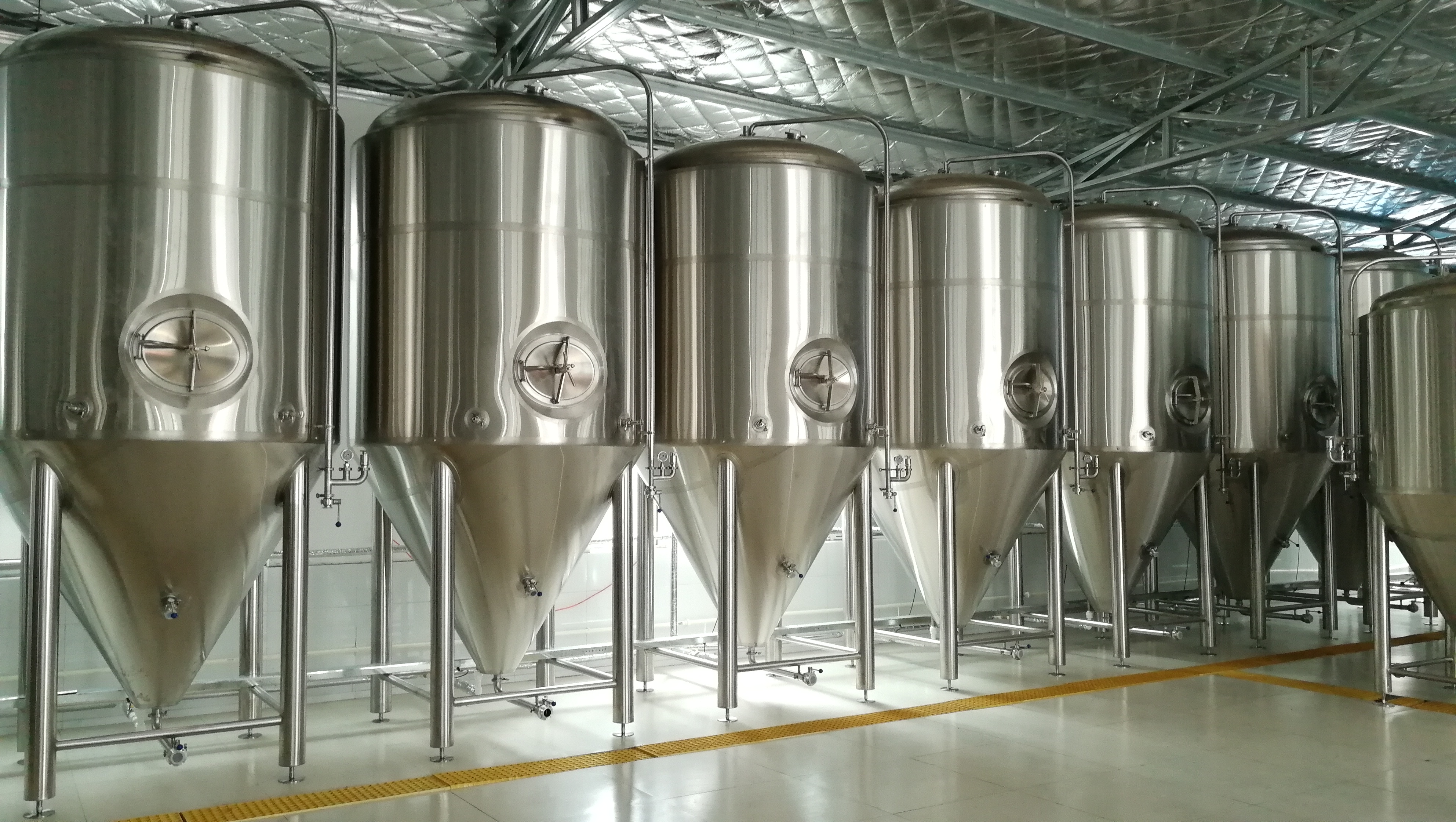

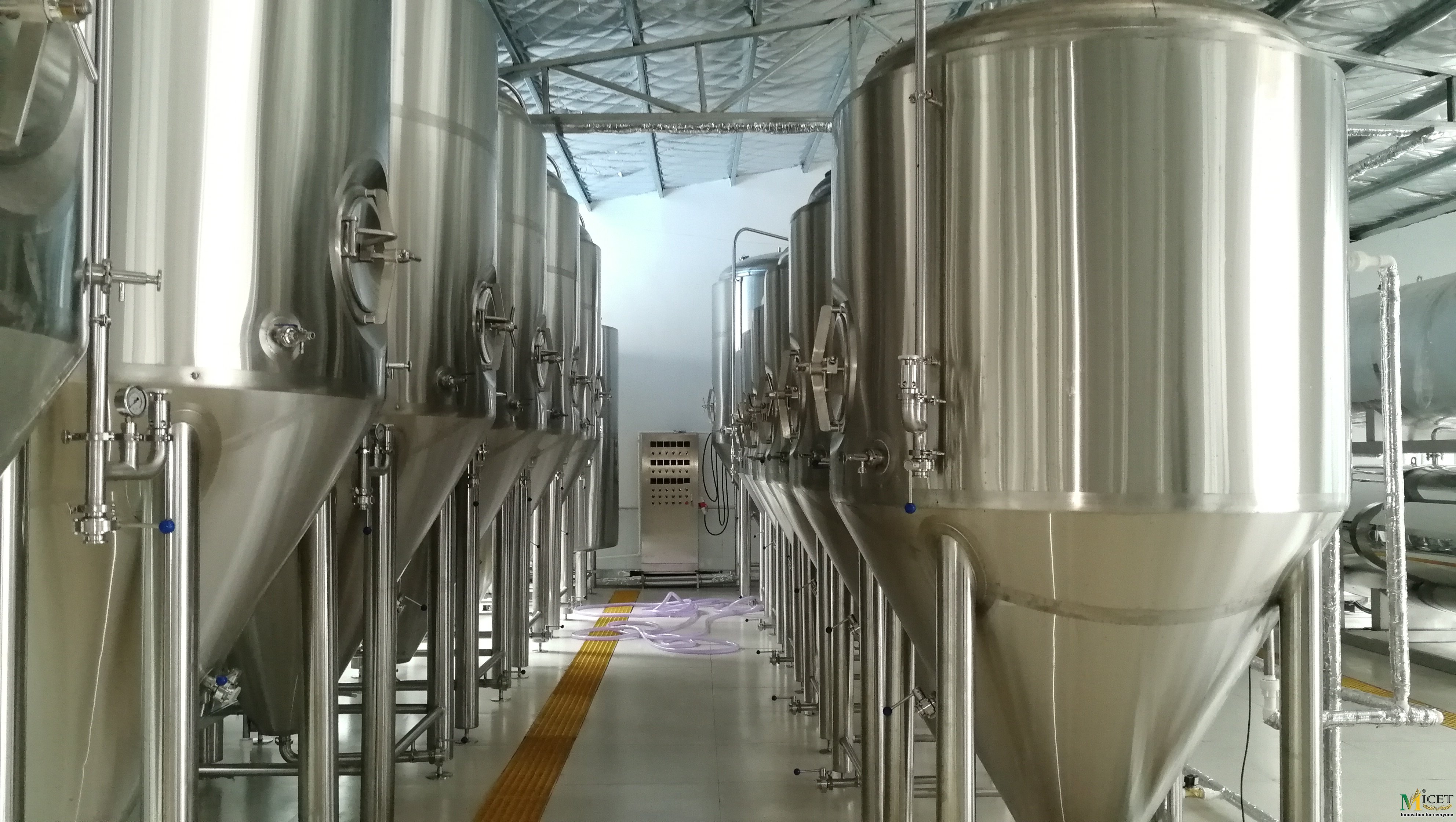

2. 10*4000l Fermentation Unit
3. 6*2000LFermentation Unit
Standard stainless steel 60 conical cylindrical fermentation tanks
Single size as brewhouse used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Side shdowless manhole, multi-positioned butterfly valves, pressure gauges, fittings etc.,
3. 6*2000LFermentation Unit
Standard stainless steel 60 conical cylindrical fermentation tanks
Single size as brewhouse used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Side shdowless manhole, multi-positioned butterfly valves, pressure gauges, fittings etc.,
4.Cooling Unit
5000L Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
5.Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
6. Portable CIP system
1. All Construction SUS 304 food grade stainless steel, all pipes are SUS304
2. All Tanks to be supplied with Data Plates including Test Data & Serial Number
3. All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks
4. All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar)
5. All tanks will be pressure tested for 48hours before leaving the Micet factory;
6. All the welds are full TIG welded by water spray method to ensure uniform weld pattern and are then acid pickled and passivated.
7. All butterfly valves are SUS 304 multiple positioned type
8. All tanks are mirror polishing inside,
9. All Gaskets are manufactured with EPDM
