Introduction:
MICET container microbreweries is designed by the idea of an South Africa distributor, which is very ecnomic solution for some specific countries and clients who cannot find a space esily;
It can not only save the space and startup cost,but also more covenient to move;This system are installing at the turn-key line.
Completed System
1. Malt miller
Particle adjustable rolling crusher

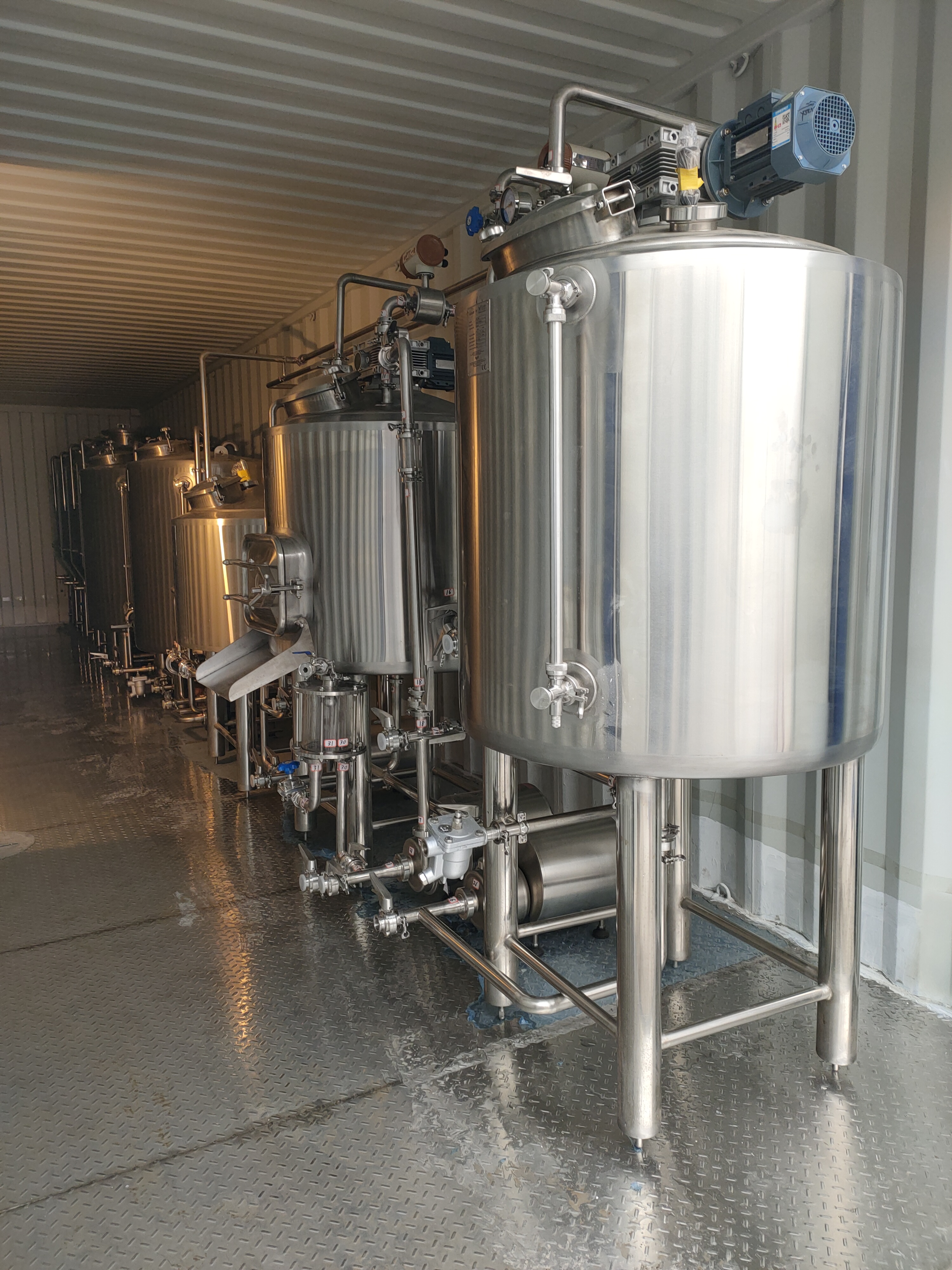

2. 500L 2 Vessel brewhouse
Mash&Lauter tun, Boiling & Whirlpool tun
500l or 1000L Hot water tank
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump

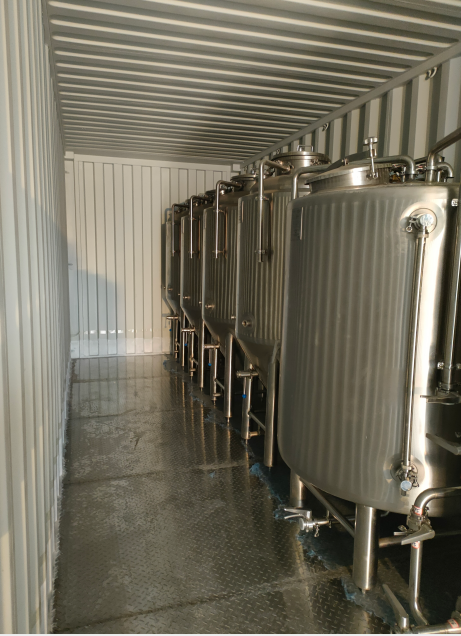

3. 4* 500L Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
4.2*500L Bright beer tank
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
5. Glycol cooling system
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
6. CIP portable pump
Both tanks solution and portable CIP pump are ok
7. Control panel
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
8. Beer Dispenser
Beer dispensing columns and faucets for directly beer servi
