Introduction:

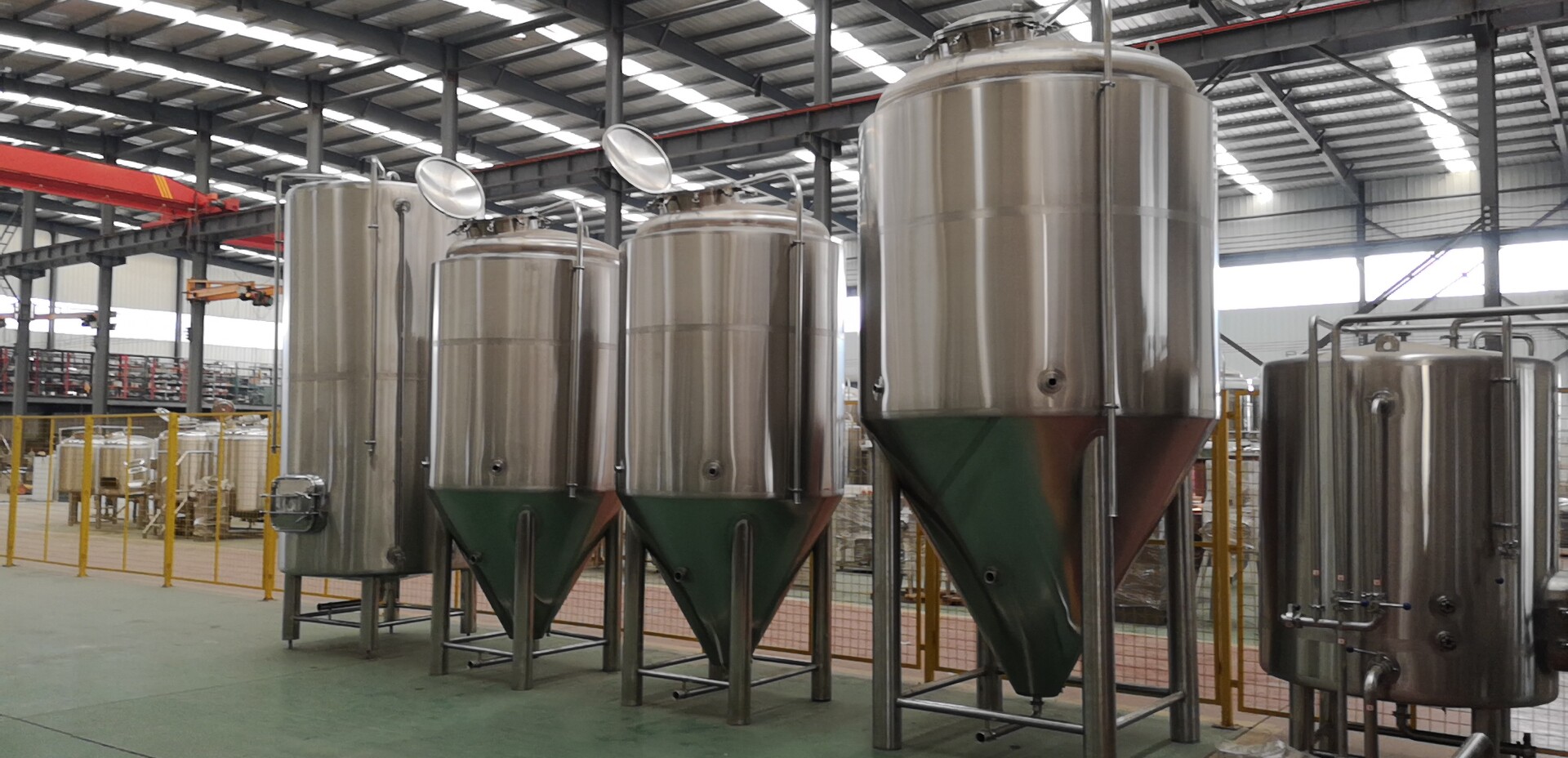

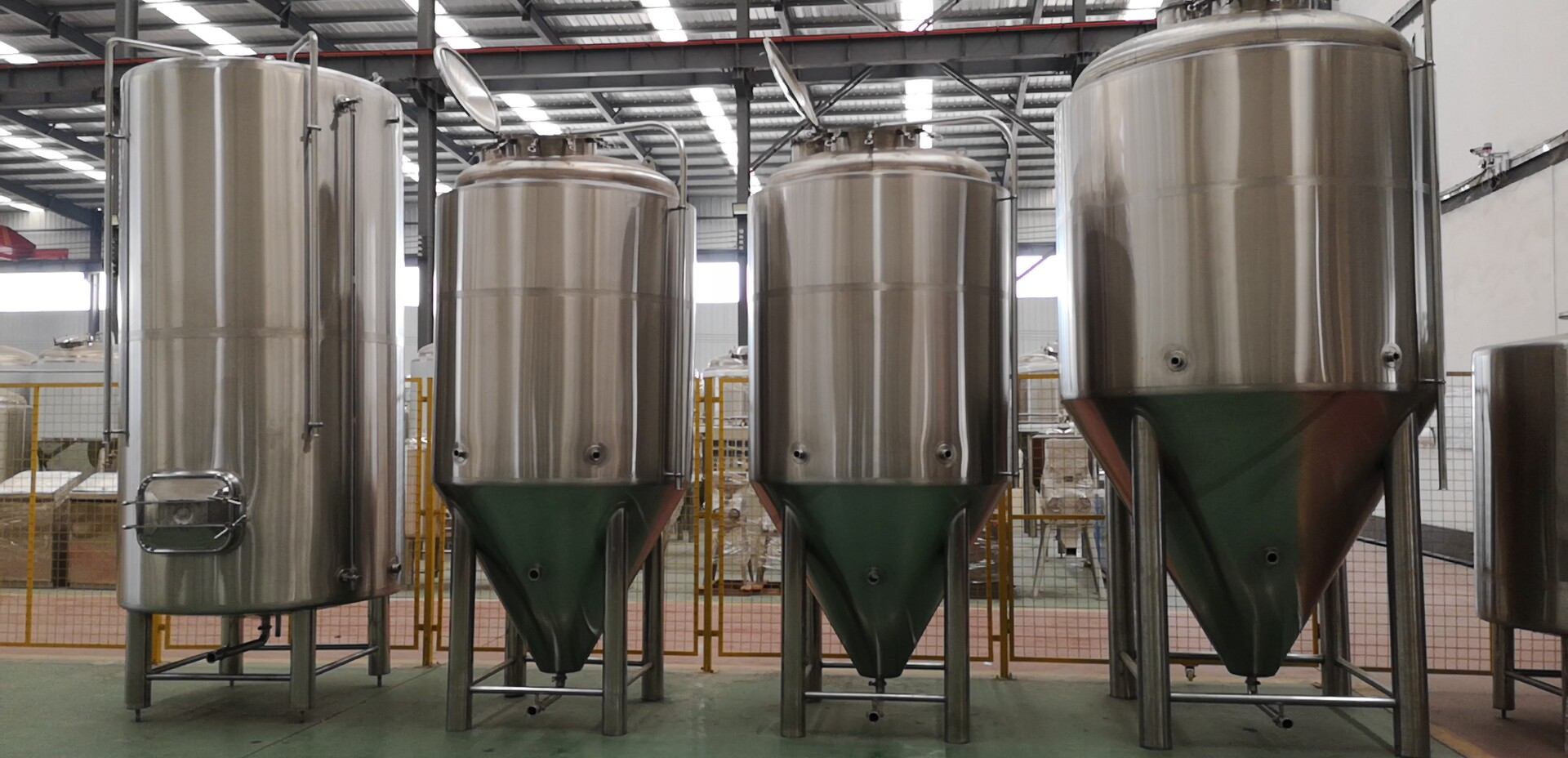

These Unitank Fermentation tanks were sent to UK brewing market, fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermenter or unitank as they are used both for fermenting and sotage. Micet stainless steel fermenter can be individually temperature controlled through glycol jackets and are fully equipped with accessories such as pressure relief valve, CIP cleaning ball, sample valve, manhole,etc Fermenting is the process during which the yeast transforms the wort into beer. Bright beer takes place after fermenting and mainly function is to make the beer more clear and store a longer time.
These Unitank Fermentation tanks were sent to UK brewing market, fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermenter or unitank as they are used both for fermenting and sotage. Micet stainless steel fermenter can be individually temperature controlled through glycol jackets and are fully equipped with accessories such as pressure relief valve, CIP cleaning ball, sample valve, manhole,etc Fermenting is the process during which the yeast transforms the wort into beer. Bright beer takes place after fermenting and mainly function is to make the beer more clear and store a longer time.
Specification:
Unitank Fermentation tanks:
Effective volume: 3000L/6000L
Total volume: 3750L/7000L (25% head space)
Inner–jacket (SUS304), TH=3.0mm; Outer-jacket: 2.0mm;
Insulation: PU-thickness: 80mm.
60degree cone; 1 zone dimpled jacket on bottom and side;
Cooling media: glycol water or alcohol water.
Stringent jacket leakage test by water and pressured gas.
360°coverage CIP spraying ball for cleaning.
Full sanitary sample valve
PT100Temp. sensor for high accuracy temperature control;
100% TIG welded joints;
Mirror polishing to 0.4μm without dead corner.
Design pressure 0.4MPa; Working pressure 0.2Mpa
Side shadowless manway 530*430mm
Seperated CIP arm and air release pipe
Seperated CIP arm and air release pipe
Rotation racking arm;
Dry hops adding port 219mm
Carbonation stone
