This 5BBL (819 liters) microbrewery equipment was used to brew both craft and filtered beer, the heating way is direct fired heating through gas burner on the firebox below the kettle. They can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels, tourist and shopping centers.This is an excellent design solution interior and a powerful marketing tool.
Electric Supply 3phase/380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz
Heating Source Electric through flange
Area Request >30M2
1. Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional

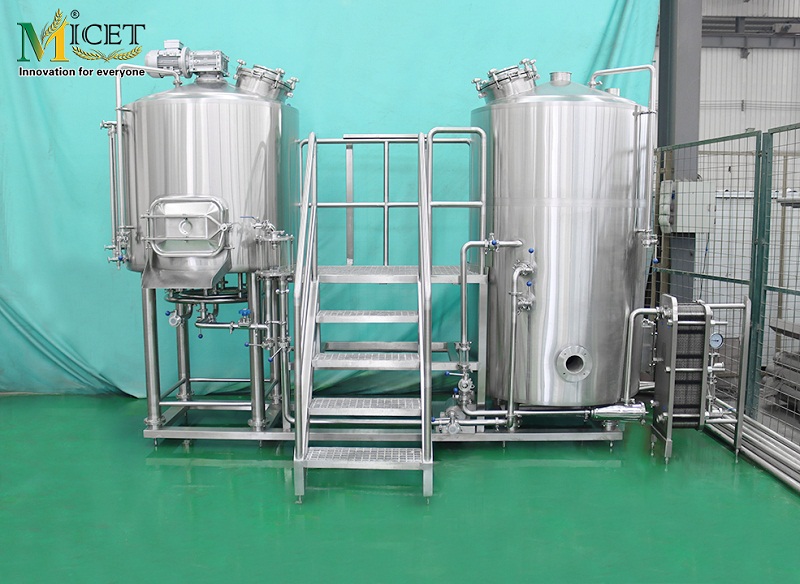

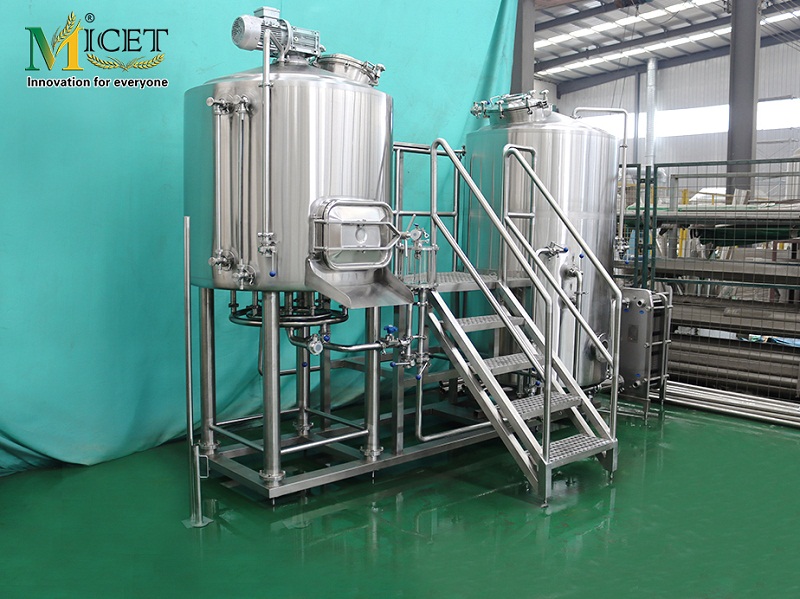

2. 5BBL Brewhouse Unit
Mash tun & Lauter tun, Kettle/Whirlpool tun in 2 Vessel combination;
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings

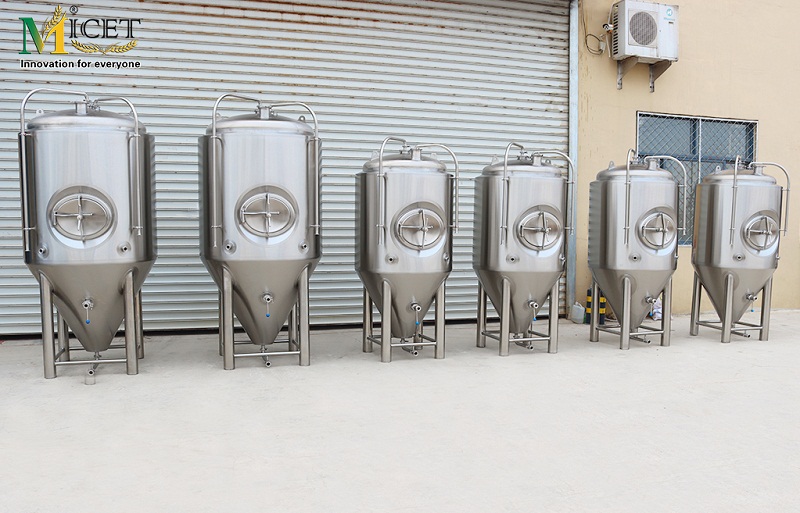

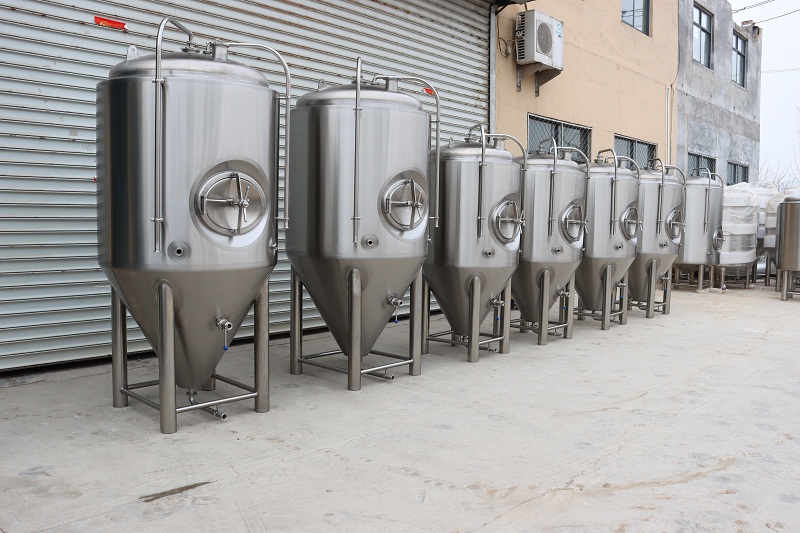

3. 5BBL and 10BBL Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
4. 2 of 5BBL Bright Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included
5. Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
6. Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
Why choose Micet? Micet: Innovation for Everyone. 1. MICET Brand: MICET: “Innovative & Craft Brewing Equipment” can be broken down to; “M” in Chinese means “perfect”, ”I” is Innovation and “ C” is craftsmanship. Our quality driven approach at MICET has formed our business concept for our company and corporate culture. MICET always adheres to the spirit of craftsmanship (quality), culture (talent), and innovation consciousness (research and development) as the main driving force of our enterprise development. MICET is a China-Canada Cooperative Leading Brewery equipment manufacturer with lots of projects installed worldwide and distributors in different country, like Canada, USA, UK, France, Romania, Italy, Brazil, Argentina, South Africa, India, etc.,. We focus on high-end product line and insist on craftsman spirit, perform strict quality control and process testing in production to ensure that customers have good expectations for equipment and on-time delivery. 2. Our Team: The Owner of MICET with 9 years of international sales experiences understands the needs of clients from different countries. Being trustworthy, valuing quality and services and making sure clients are satisfied with the equipment delivered has placed MICET in the top tier of equipment manufacturing. Our Production Director has 10 years of experience in equipment production with excellent communication skills, workshop management and quality control Mr. Fan ensures that all equipment leaving the factory adheres to the highest quality. Our Quality Inspector has 7 years of experience with production process control, testing, inspection, shipping safety and making sure that all the equipment leaves the factory and arrives to our clients in perfect condition. Our Design Technician is a design engineer graduating from brewing university with 7 years experiences in designing CAD, 3D and equipment design. Our After-Sales Engineers has been working on equipment installation for 9 years in China & abroad. Our Purchase Engineers experiences with installation, brewing and designing allows for MICET to find all solutions. MICET provide professional engineers for installation and after-sale all over the world depending on our clients’ needs.
3. Products quality control: Our factory is working under a 5S management with professional and strict inspections along with testing as each process is completed. Each order has strict inspection records from material inspection & referencing, detailed production progress and final product inspection before to delivery and packing. Our goal is to ensure the client receives the highest quality equipment.
4. Products and workmanship: MICET production adheres to the highest quality production standards with water cooled welding, uniform dimpled steam & cooling jackets to ensure uniformed heating & cooling. All welds undergo passivation and are polished to the customer’s request.
5. Warranty: MICET provides a 3 years warranty on tanks sold without manufacturing defects from the factory. MICET does not cover damage to tanks from unloading of tanks at customer site, damage resulting from improper use of tanks for products other than beer or appropriate beverage, damage from exceeding designed tanks pressure. MICET provides a 1 year warranty on auxiliaries and accessories provided they are used under the scope not exceeding pressures, temperatures, or improper handling.
6. Factory: MICET factory covers 5000m², with 3 different production areas, parts & components area, receiving dock & inspection, cutting, welding & polishing area along with our finished product display area. Our production machinery includes: plasma cutting machines, plate rolling machines, cone rolling machines, shearing machines, polishing machines, bending machines, threading machines and all the necessary components to produce world class equipment. Our products are exported to more than 30 countries in the world.
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304 All signs & wording in English All tanks to be supplied with Data Plates including Test Data & Serial Number All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar) All tanks will be pressure tested for 48hours before leaving the MICET factory; All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation All tanks are mirror polishing inside, to be Ra 0.4um. All Gaskets are manufactured with EPDM
T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.
The manufacturing time is 30 – 45 working days, and will be commenced as soon the initial 40% deposit is received in MICET account and technical drawings are signed & confirmed by the client The technical files, layouts, drawings and all other technical confirmation time(s) shall not be included in the manufacturing time. Production will not start until all drawings, technical files or layouts are confirmed & signed by appropriate party. This can lead to delays in production and / or delivery time if not completed.
