Introduction:

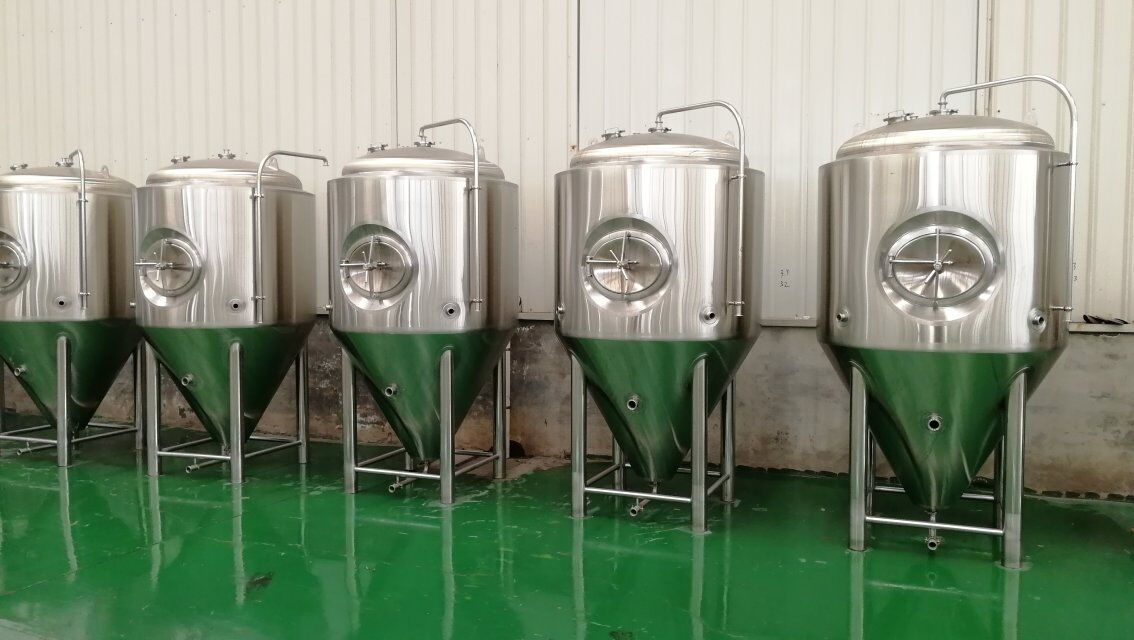

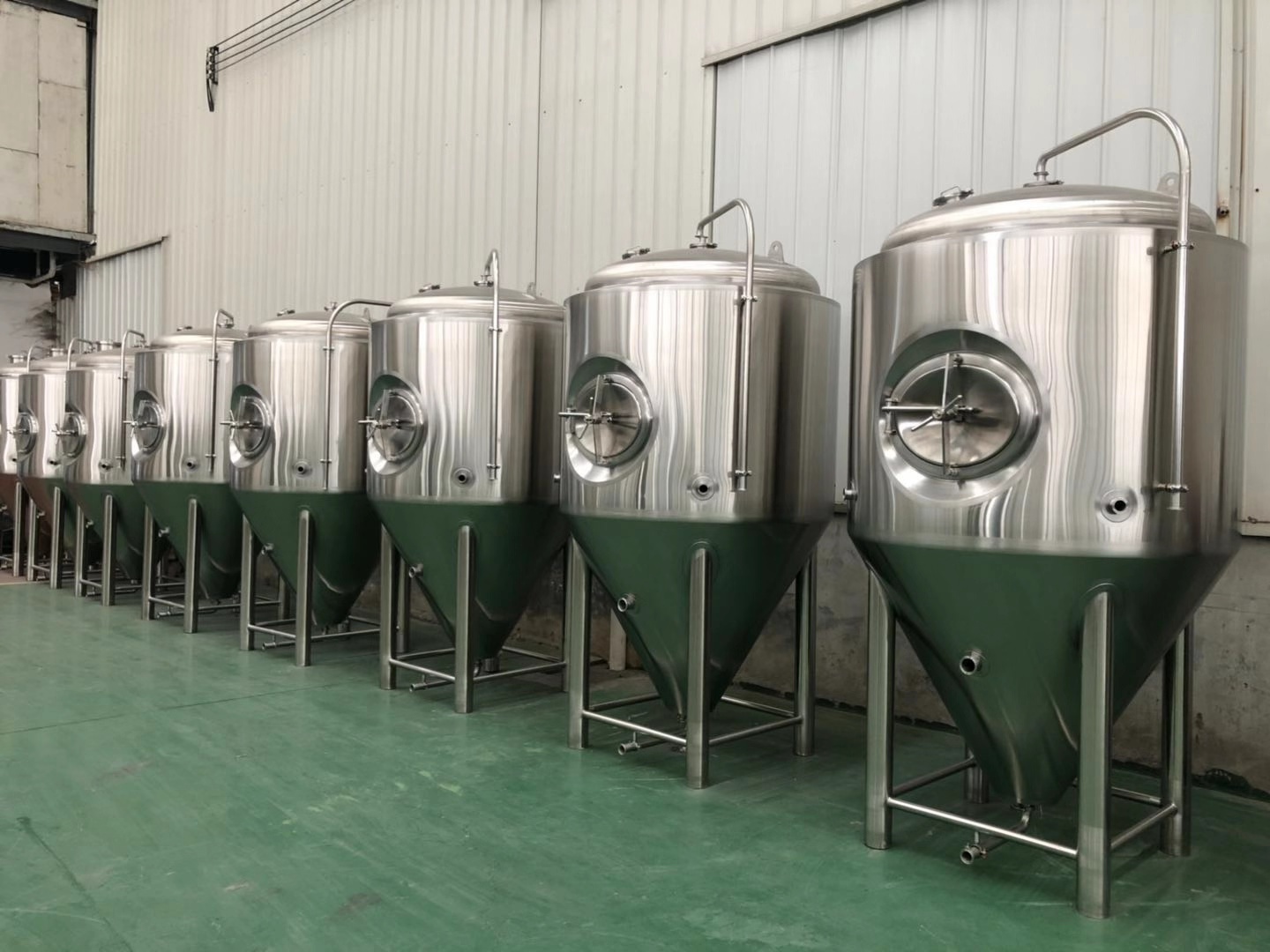

This Fermentation tanks was shipped and installed in Agentina, is also called CCT (Cylindrical Conical Fermentation Tank), FV (Fermentation Vessel), primary fermenter or unitank as they are used both for fermenting and sotage. Micet stainless steel fermenter can be individually temperature controlled through glycol jackets and are fully equipped with accessories such as pressure relief valve, CIP cleaning ball, sample valve, manhole,etc Fermenting is the process during which the yeast transforms the wort into beer. Bright beer takes place after fermenting and mainly function is to make the beer more clear and store a longer time.
Specification:
Fermentation tanks:
Effective volume: 1000L;
Total volume:1250L(25% head space)
Inner–jacket (SUS304), TH=3.0mm; Outer-jacket: 2.0mm;
Insulation: PU-thickness: 80mm.
60degree cone; 1 zone dimpled jacket on bottom and side;
Cooling media: glycol water or alcohol water.
Stringent jacket leakage test by water and pressured gas.
360°coverage CIP spraying ball for cleaning.
Full sanitary sample valve
PT100Temp. sensor for high accuracy temperature control;
100% TIG welded joints;
Mirror polishing to 0.4μm without dead corner.
Design pressure 0.4MPa; Working pressure 0.2Mpa
Side shadowless manway 530*430mm
Rotation racking arm;
Dry hops adding port
Complete valves, fittings and all parts
