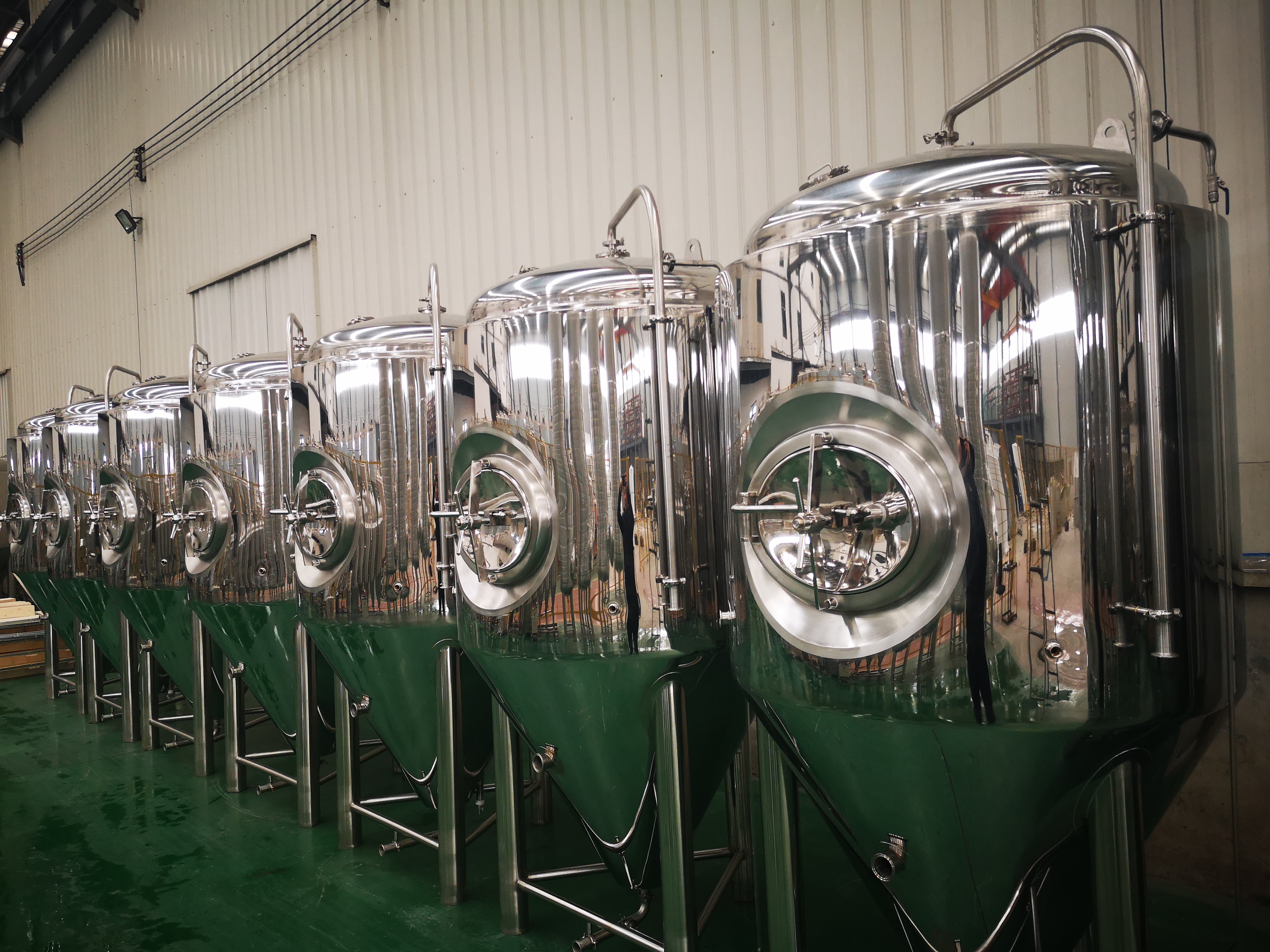

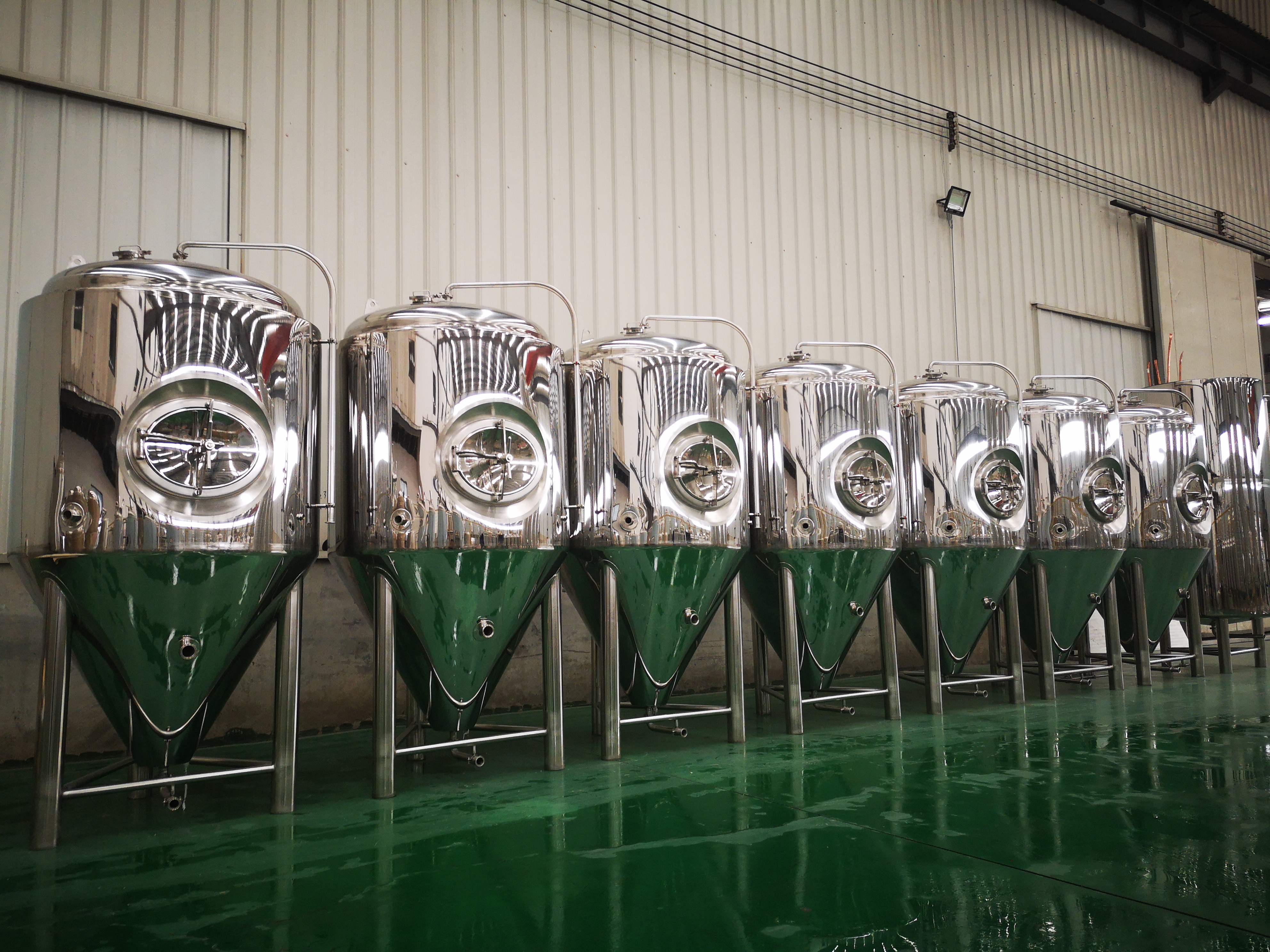

India fermentation tanks was designed through the India brewing market, double brewed of brewhouse, mirror finish, full jackets, spunding valves, etc.,
Material: SUS 304 stainless steel;
Inner–jacket, TH=3.0mm; Outer-jacket, TH=2.0mm;
Dimple plate jacket for cooling, double or single avaliable
Design pressure 0.4MPa; Working pressure 0.2Mpa
PT100Temp. sensor for high accuracy temperature control;
Mirror polishing to 0.4μm without dead corner.
Side shadowless manway 330*430mmStandard fitting 360°ratated CIP Spraying Ball*1
Rotation racking arm
Dry hops adding port
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304 All signs & wording in English All tanks to be supplied with Data Plates including Test Data & Serial Number All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar) All tanks will be pressure tested for 48hours before leaving the MICET factory; All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation All tanks are mirror polishing inside, to be Ra 0.4um. All Gaskets are manufactured with EPDM
T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.
The manufacturing time is 30 – 45 working days, and will be commenced as soon the initial 40% deposit is received in MICET account and technical drawings are signed & confirmed by the client The technical files, layouts, drawings and all other technical confirmation time(s) shall not be included in the manufacturing time. Production will not start until all drawings, technical files or layouts are confirmed & signed by appropriate party. This can lead to delays in production and / or delivery time if not completed.
