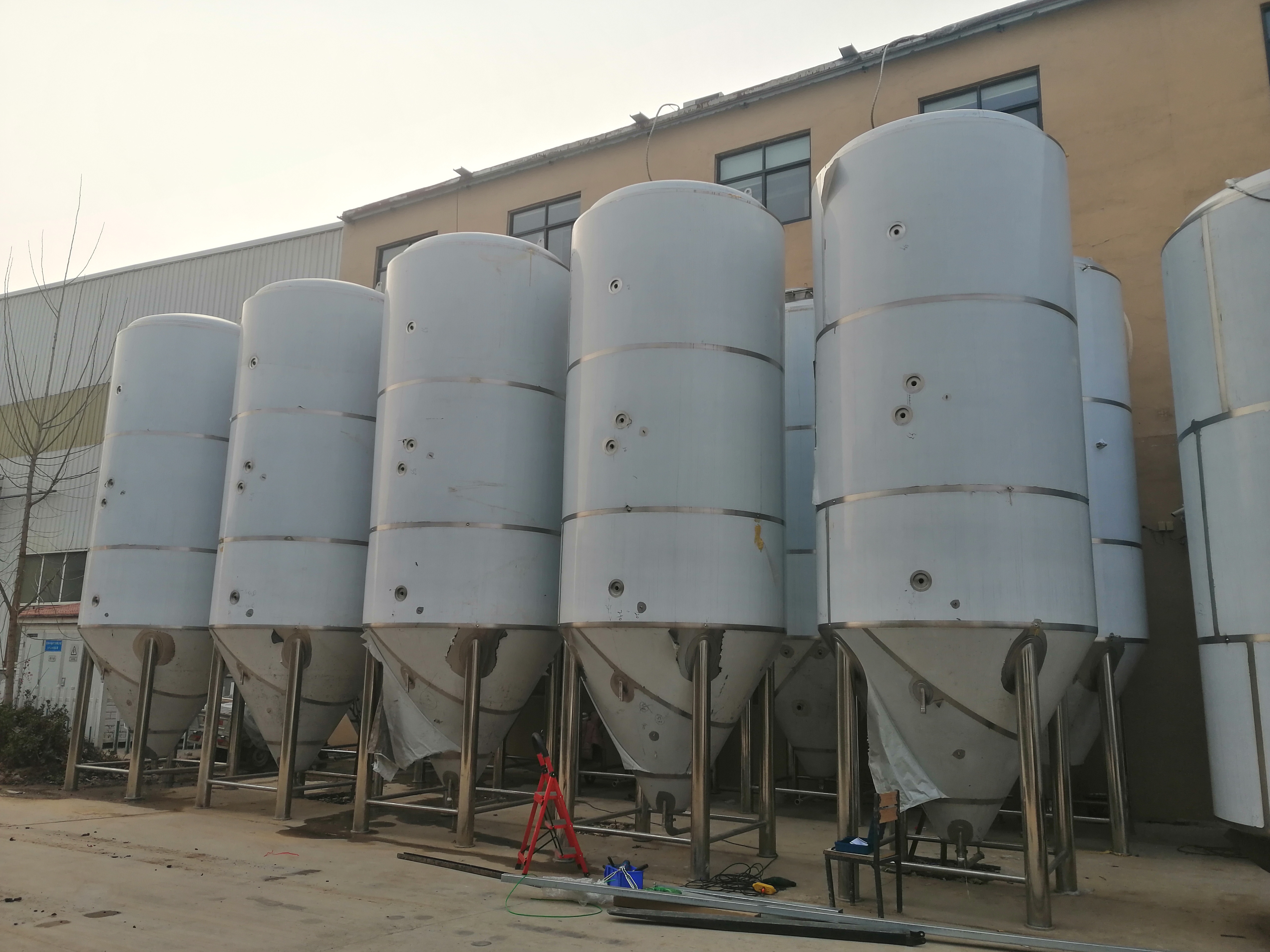

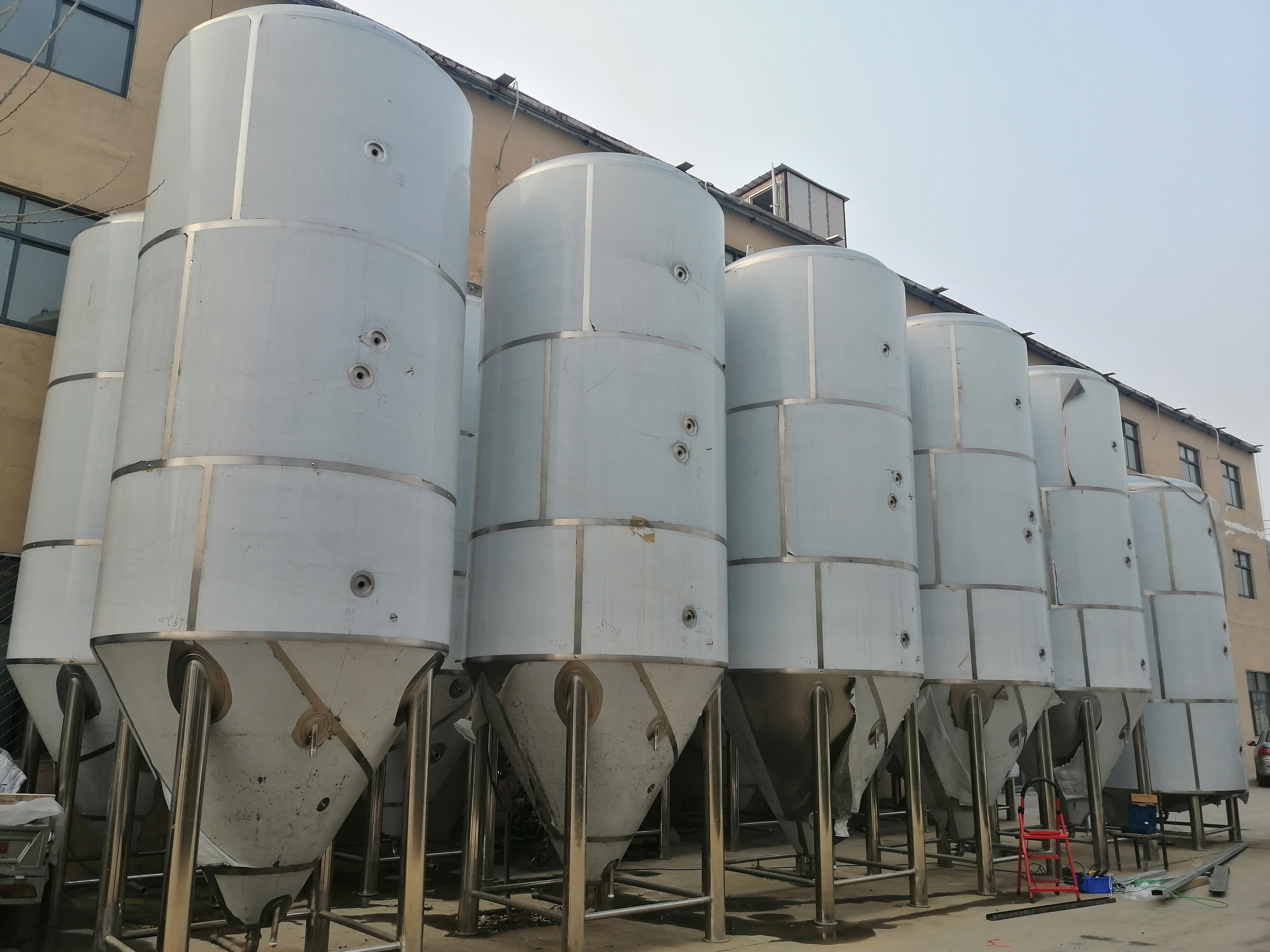

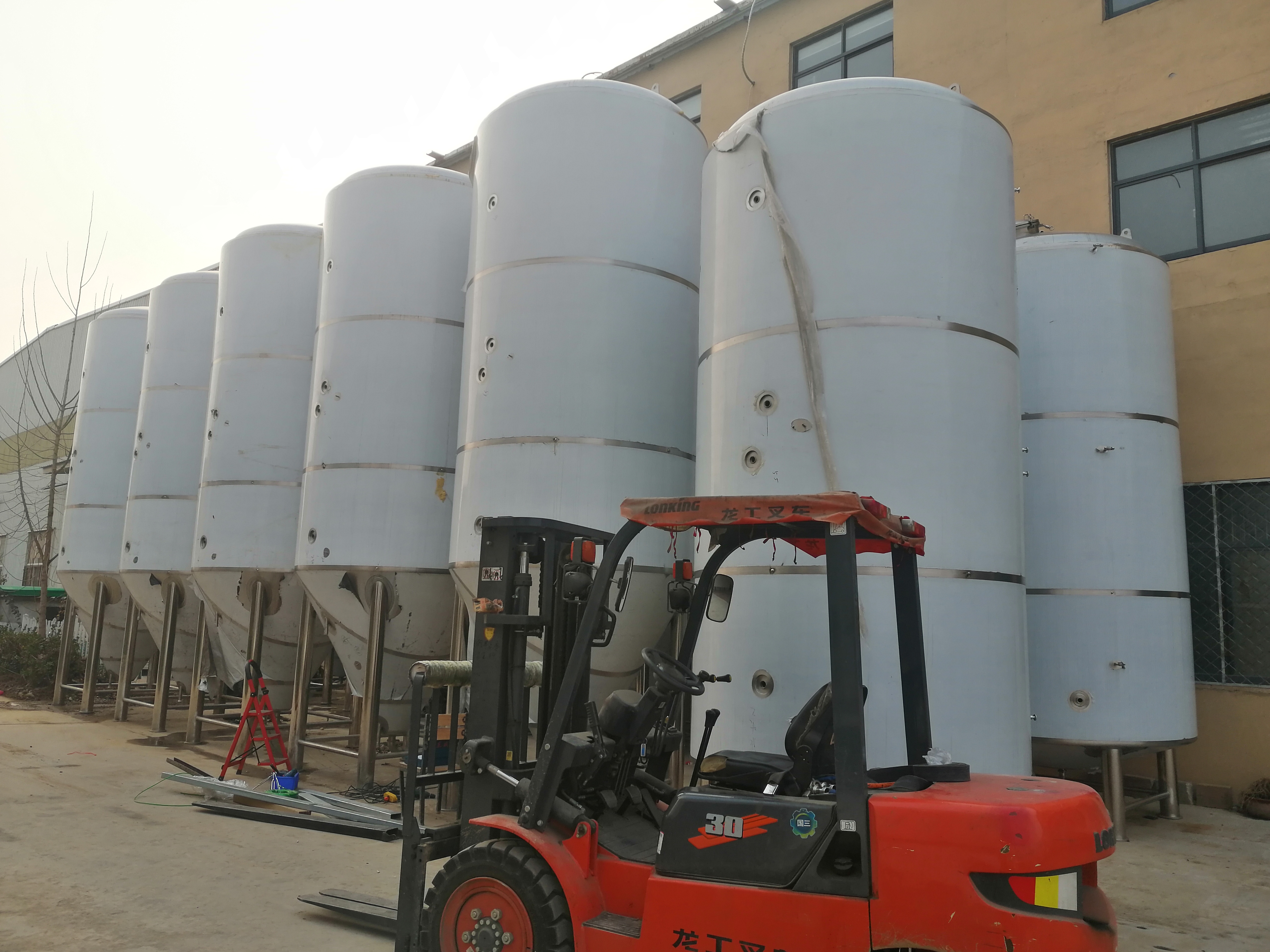

20000L Doubel Wall fermenters for beer brewing
Fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), unitanks fermenter, primary fermenter or unitank as they are used both for fermenting and sotage. Micet stainless steel fermenter can be individually temperature controlled through glycol jackets and are fully equipped with accessories such as pressure relief valve, CIP cleaning ball, sample valve, manhole,etc Fermenting is the process during which the yeast transforms the wort into beer. Bright beer takes place after fermenting and mainly function is to make the beer more clear and store a longer time. The fermenter can be top manway or side manway according to different client requirement for lager or ale beer brewing.
60degree cone; Three cooling zone dimpled jacket on bottom and side wit individual inlet and outlet;
Cooling media: glycol water or alcohol water.
Stringent jacket leakage test by water and pressured gas for 12hours.
360°coverage CIP spraying ball for cleaning.
Full sanitary sample valve
PT100Temp. sensor for high accuracy temperature control;
Inner shell design pressure 0.4MPa; Working pressure 0.2Mpa
Jacket design pressure: 0.5MPa; Working pressure 0.3Mpa
Side shadowless manway 530*430mm
Seperated CIP arm and air release pipe
Rotation racking arm;
Dry hops adding port
100% TIG welded joints;
Mirror polishing to 0.4μm without dead corner.
Complete valves, fittings and all parts
1. Strict quality control system:Micet focus on high-end product line and insist on craftsman spirit to make first-class brewing equipment, our factory have strict quality control and process inspection & testing system to make sure you get the quality you expect and delivery on time. Each of our orders shipment will have 5 inspection steps and the inspection record from materials in checking, production process, jacket pressure testing by water and air, finished product inspection and 48 hours water testing, equipment packing and loading inspection, finished product to the delivery and packing process, etc. when there is any problems, it’s easier to keep record and solve the issues quickly.
2.All piping mark numbers before shipping. Meanwhile In order to help customer to install easily, we will provide a whole process piping installation diagram as per the installation sequence.
3. About workmanship, our welding are all full welding by water, uniform dimpled steam and cooling jacket to ensure no leaking and long life, welds passivated! Our polishing are overall mirror polishing without any welds left! Below is some welding and polishing pictures and videos.
4. Most important is stainless plate thickness, most manufacturer list inner she'll 3.0mm and outer shell 2.0mm, but they eventually only use large 2.5-2.7mm, but Micet don't, our minimum will not less than 2.98mm, MICET do not cut corners.
5.All the accessorizes for brewhouse and fermenting will be counted and packed separately.
6. For shipping, each of our port will have a lid in case the dust goes into inside during shipping. For packing, stand tank will be full packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by steel frame on the skid and the legs will be fixed by thread in case of any moving during transportation.
All Construction is from SUS 304 food grade stainless steel, all pipes are SUS304 All signs & wording in English All tanks to be supplied with Data Plates including Test Data & Serial Number All tanks will be tested and inspected in the NDT room after construction & Quality Control Checks All jackets will be tested using water pressure testing, testing pressure: 0.4Mpa (4 Bar) & working pressure:0.2Mpa (2Bar) All tanks will be pressure tested for 48hours before leaving the MICET factory; All the welds are full TIG welded by water spray method to ensure uniform weld pattern with full pickling & passivation All tanks are mirror polishing inside, to be Ra 0.4um. All Gaskets are manufactured with EPDM
T/T transfer, 40% advance payment in order to start production,
T/T transfer 60% before the equipment is shipped.
Alibaba trader assurance is available to guarantee your payment safety.
The manufacturing time is 30 – 45 working days, and will be commenced as soon the initial 40% deposit is received in MICET account and technical drawings are signed & confirmed by the client The technical files, layouts, drawings and all other technical confirmation time(s) shall not be included in the manufacturing time. Production will not start until all drawings, technical files or layouts are confirmed & signed by appropriate party. This can lead to delays in production and / or delivery time if not completed.
